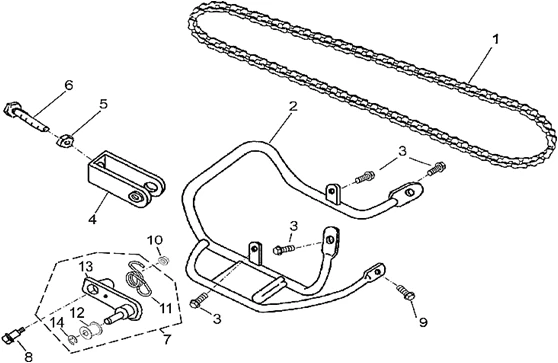

Chassis : 28.30 CHAÎNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/311/Quasar_180_2004_28.30.PNG)
1 |
AP8911259 - CATENA 520X72 More informationQuantity required : 1 |
||||||
|
2 |
Prot couronne comp. |
||||||
|
3 |
AP8910434 - VITE TE FLANG. M8X16 More informationQuantity required : 4 |
||||||
|
4 |
AP8910885 - REGISTRO More informationQuantity required : 1 |
||||||
|
5 |
AP8910375 - DADO M8 More informationQuantity required : 1 |
||||||
|
6 |
AP8911037 - VITE TE FLANG.M8X60 More informationQuantity required : 1 |
||||||
|
7 |
Tendeur de chaîne |
||||||
|
8 |
AP8911011 - VITE More informationQuantity required : 1 |
||||||
|
9 |
Vis bride |
||||||
|
10 |
AP8910313 - DADO FLANG. M8 More informationQuantity required : 1 |
||||||
|
11 |
AP8911410 - CONTROMOLLA More informationQuantity required : 1 |
||||||
|
12 |
AP8911331 - RULLINO DI GUIDA More informationQuantity required : 1 |
||||||
|
13 |
Corps galet tendeur |
||||||
|
14 |
Bague en 'C' |
