Vehicle Exploded View - APRILIA QUASAR 180 2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

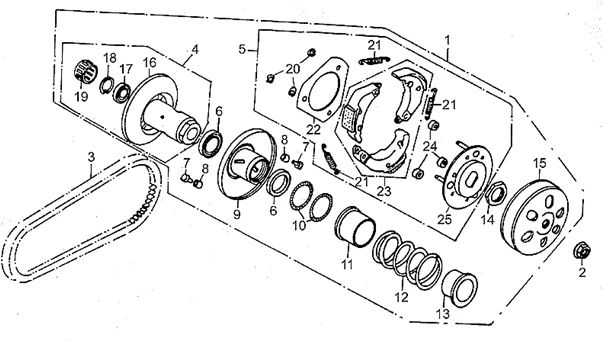

Moteur : 29.10 VARIATEUR AVEC EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/311/Quasar_180_2004_29.10.PNG)
1 |
AP8910771 - TRASMISSIONE SECONDARIA CPL. More informationQuantity required : 1 |
||||||
|
2 |
AP8910377 - DADO FLANG.M12 More informationQuantity required : 1 |
||||||
|
3 |
AP8910788 - CINGHIA TRASMISSIONE 743X20X30 More informationQuantity required : 1 |
||||||
|
4 |
AP8910789 - PULEGGIA SECONDARIA FISSA CPL. More informationQuantity required : 1 |
||||||
|
5 |
Variateur avec embrayage |
||||||
|
6 |
Joint spi |
||||||
|
7 |
AP8910792 - PERNO DI GUIDA More informationQuantity required : 3 |
||||||
|
8 |
Rouleau de guidage |
||||||
|
9 |
AP8910791 - PULEGGIA SECONDARIA MOBILE More informationQuantity required : 1 |
||||||
|
10 |
AP8911035 - O-RING 36X2 More informationQuantity required : 2 |
||||||
|
11 |
AP8910796 - SCODELLINO INT.PORTAMOLLA More informationQuantity required : 1 |
||||||
|
12 |
AP8910795 - MOLLA More informationQuantity required : 1 |
||||||
|
13 |
AP8910797 - SCODELLINO EST.PORTAMOLLA More informationQuantity required : 1 |
||||||
|
14 |
AP8911012 - DADO SPECIALE M28 More informationQuantity required : 1 |
||||||
|
15 |
AP8910773 - CAMPANA FRIZIONE More informationQuantity required : 1 |
||||||
|
16 |
AP8910790 - PULEGGIA SECONDARIA FISSA More informationQuantity required : 1 |
||||||
|
17 |
AP8911117 - CUSCINETTO RADIALE 6902U More informationQuantity required : 1 |
||||||
|
18 |
AP8911080 - ANELLO DI FERMO M28 More informationQuantity required : 1 |
||||||
|
19 |
Cage à rouleaux |
||||||
|
20 |
Joint torique |
||||||
|
21 |
Ressort embrayage |
||||||
|
22 |
AP8910784 - PIASTRA More informationQuantity required : 1 |
||||||
|
23 |
AP8910786 - CEPPI FRIZIONE (3CEPPI 1SETT) More informationQuantity required : 3 |
||||||
|
24 |
AP8910787 - GOMMINO More informationQuantity required : 3 |
||||||
|
25 |
AP8910783 - PIATTO PORTACEPPI More informationQuantity required : 1 |
