Vehicle Exploded View - APRILIA QUASAR 180 2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

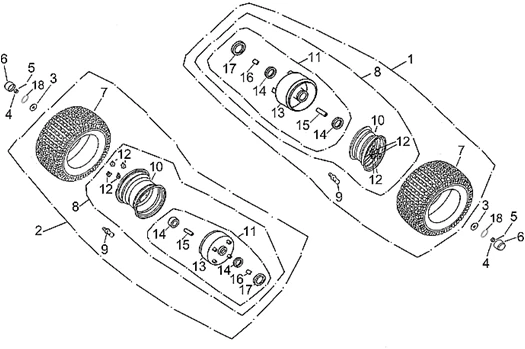

Chassis : 28.24 ROUE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/311/Quasar_180_2004_28.24.PNG)
1 |
Roue AV G cpl. |
||||||
|
1 |
Roue AV D cpl. |
||||||
|
2 |
Roue AV D cpl. |
||||||
|
3 |
Rondelle plate |
||||||
|
4 |
Ecrou autobloqu. |
||||||
|
5 |
Goupille |
||||||
|
6 |
AP8910215 - CAPPUCCIO More informationQuantity required : 2 |
||||||
|
7 |
Pneu avant |
||||||
|
7 |
AP8911479 - PNEUMATICO 21X7-10 More informationQuantity required : 2 |
||||||
|
7 |
Rondelle |
||||||
|
8 |
Roue AV nue cpl. |
||||||
|
8 |
AP8911323 - RUOTA ANT.NUDA CPL. More informationQuantity required : 2 |
||||||
|
9 |
AP8910207 - VALVOLA More informationQuantity required : 2 |
||||||
|
10 |
AP8911489 - CERCHIO 10X5,5 More informationQuantity required : 2 |
||||||
|
11 |
Tamb.AV cpl. |
||||||
|
12 |
AP8910315 - DADO M10 More informationQuantity required : 8 |
||||||
|
13 |
AP8911308 - TAMBURO ANT.CPL. More informationQuantity required : 2 |
||||||
|
14 |
AP8911251 - CUSCINETTO More informationQuantity required : 4 |
||||||
|
15 |
Entretoise interne |
||||||
|
16 |
Douille entretoise externe |
||||||
|
17 |
AP8911136 - PARAOLIO 23X35X6 More informationQuantity required : 2 |
