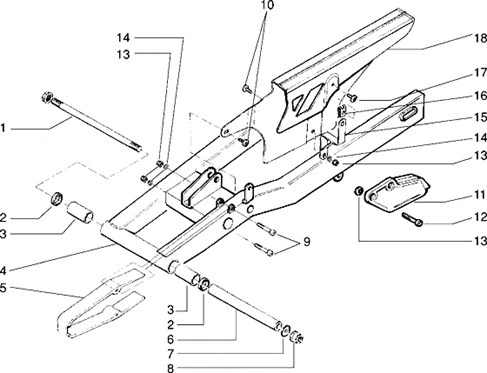

Châssis : T18 FOUCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/663/RK_50_1998-2005_T18.PNG)
1 |
AXE |
||||||
|
2 |
321954 - BAGUE More informationQuantity required : 2 |
||||||
|
3 |
322367 - BAGUE More informationQuantity required : 2 |
||||||
|
4 |
Fourche |
||||||
|
5 |
Patin |
||||||
|
6 |
811330 - CUVETTE More informationQuantity required : 1 |
||||||
|
7 |
RONDELLE |
||||||
|
8 |
ECROU |
||||||
|
9 |
030057 - VIS More informationQuantity required : 2 |
||||||
|
10 |
809903 - VIS More informationQuantity required : 2 |
||||||
|
11 |
812810 - GUIDE CHAINE More informationQuantity required : 1 |
||||||
|
12 |
VIS |
||||||
|
13 |
810511 - ECROU More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
14 |
003056 - RONDELLE More informationQuantity required : 4 |
||||||
|
15 |
PLAQUE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
16 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
17 |
BOULON |
||||||
|
18 |
Carter chaîne |
