Vehicle Exploded View - GILERA RK 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

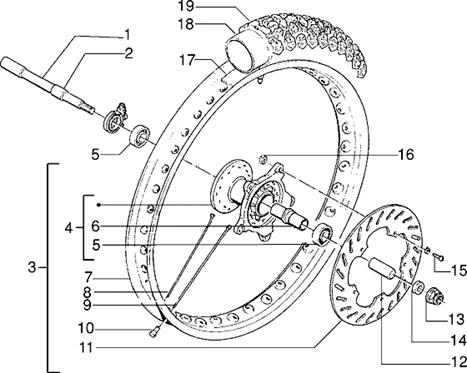

Suspensions-roues : T34 ROUE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/663/RK_50_1998-2005_T34.PNG)
1 |
AXE ROUE |
||||||
|
2 |
810544 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
3 |
814425 - ROUE AVT More informationQuantity required : 1 |
||||||
|
4 |
MOYEU AV COMPL |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/0/img/66110.jpg)
5 |
FRONT WHEEL BEARING "PIAGGIO GENUINE PART" 50 ZIP/GILERA 50 H@K, GSM, ZULU -272155 More informationQuantity required : 2 |
||||||
|
6 |
DEDOUBLEUR |
||||||
|
7 |
812155 - JANTE ROUE More informationQuantity required : 1 |
||||||
|
8 |
RAYON |
||||||
|
9 |
RAYON |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/4/2/6/img/92426.jpg)
10 |
814172 - ECROU More informationQuantity required : 1 |
||||||
|
11 |
809471 - DISQUE DE FREIN AV More informationQuantity required : 1 |
||||||
|
12 |
809514 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
13 |
ECROU |
||||||
|
14 |
RONDELLE |
||||||
|
15 |
VIS |
||||||
|
16 |
810511 - ECROU More informationQuantity required : 6 |
||||||
|
17 |
PROTECTION |
||||||
|
18 |
809493 - CHAMBRE AIR More informationQuantity required : 1 |
||||||
|
19 |
PNEU |
