Vehicle Exploded View - GILERA RK 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

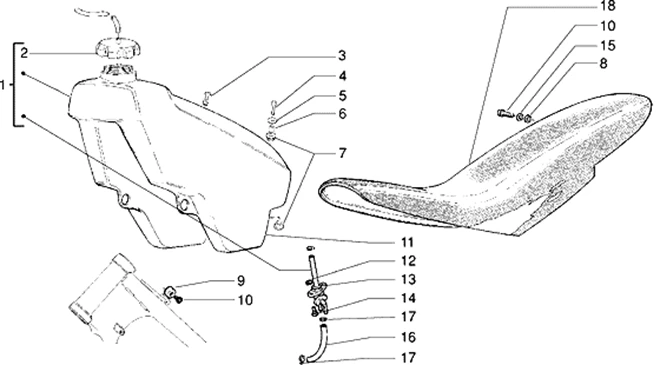

Châssis : T20 RESERVOIR-SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/663/RK_50_1998-2005_T20.PNG)
1 |
8125065 - RESERVOIR COMPLEM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/8/0/1/img/93801.jpg)
2 |
952315 - BOUCHON More informationQuantity required : 1 |
||||||
|
3 |
VIS |
||||||
|
4 |
030054 - VIS S03005400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/6/img/65356.jpg)
5 |
013092 - RONDELLE S01309200 More informationQuantity required : 1 |
||||||
|
6 |
ENTRETOISE |
||||||
|
7 |
SILENT BLOC |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
8 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 1 |
||||||
|
9 |
330692 - TAMPON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/5/img/66335.jpg)
10 |
SCREW - MULTI PURPOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -319165- More informationQuantity required : 3 |
||||||
|
11 |
RESERVOIR ESSENCE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
12 |
006966 - RONDELLE S00696600 More informationQuantity required : 2 |
||||||
|
13 |
ROBINET ESSENCE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/8/img/65638.jpg)
14 |
031087 - ECROU S03108700 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
15 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
||||||
|
16 |
TUYAU ESSENCE |
||||||
|
17 |
COLLIER |
||||||
|
18 |
SELLE 50RK |
