Vehicle Exploded View - GILERA RK 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

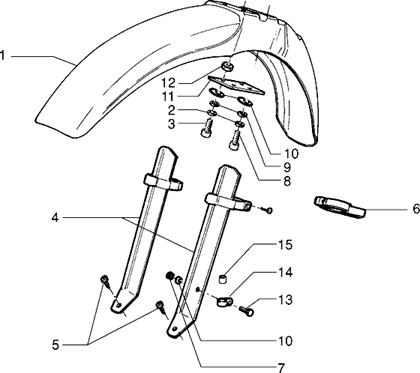

Châssis : T26 GARDEBOUE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/663/RK_50_1998-2005_T26.PNG)
1 |
GARDE BOUE AV |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
2 |
006966 - RONDELLE S00696600 More informationQuantity required : 2 |
||||||
|
3 |
VIS |
||||||
|
4 |
PROTECTION DE FOURCH |
||||||
|
5 |
809903 - VIS More informationQuantity required : 2 |
||||||
|
6 |
Guide trasmission |
||||||
|
7 |
810511 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/8/img/65638.jpg)
8 |
031087 - ECROU S03108700 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
9 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
10 |
013880 - RONDELLE More informationQuantity required : 4 |
||||||
|
11 |
PLAQUE |
||||||
|
12 |
810511 - ECROU More informationQuantity required : 2 |
||||||
|
13 |
809903 - VIS More informationQuantity required : 1 |
||||||
|
14 |
COLLIER |
||||||
|
15 |
216984 - PASSE CABLES More informationQuantity required : 1 |
