Vehicle Exploded View - GILERA RK 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

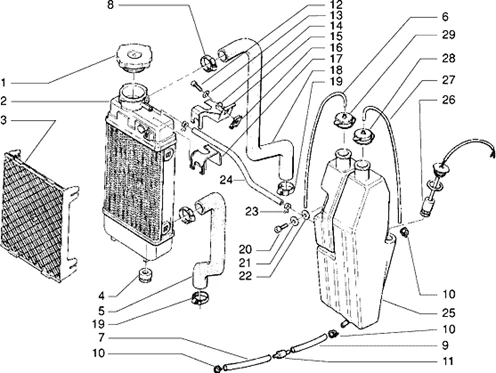

Moteur : T16 RADIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/663/RK_50_1998-2005_T16.PNG)
1 |
343591 - BOUCHON RADIATEUR More informationQuantity required : 1 |
||||||
|
2 |
942951 - RADIATEUR More informationQuantity required : 1 |
||||||
|
3 |
CACHE |
||||||
|
4 |
SILENC BLOC RADIAT |
||||||
|
5 |
942531 - DURITE RADIATEUR INF More informationQuantity required : 1 |
||||||
|
6 |
TUYAU RENIFLARD |
||||||
|
7 |
813225 - TUYAU More informationQuantity required : 1 |
||||||
|
8 |
812126 - COLLIER More informationQuantity required : 1 |
||||||
|
9 |
813225 - TUYAU More informationQuantity required : 1 |
||||||
|
10 |
COLLIER |
||||||
|
11 |
298990 - FILTRE A HUILE More informationQuantity required : 1 |
||||||
|
12 |
810911 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
13 |
013880 - RONDELLE More informationQuantity required : 1 |
||||||
|
14 |
COLLIER |
||||||
|
15 |
SUPPORT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
16 |
006966 - RONDELLE S00696600 More informationQuantity required : 1 |
||||||
|
17 |
Cavalier |
||||||
|
18 |
942530 - TUYAU More informationQuantity required : 1 |
||||||
|
19 |
812126 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/0/5/1/img/74051.jpg)
20 |
030262 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
21 |
012533 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
22 |
003056 - RONDELLE More informationQuantity required : 1 |
||||||
|
23 |
COLLIER |
||||||
|
24 |
TUYAU |
||||||
|
25 |
RESERVOIR D'HUILE |
||||||
|
26 |
JAUGE HUILE |
||||||
|
27 |
TUYAU RENIFLARD |
||||||
|
28 |
BOUCHON |
||||||
|
29 |
BOUCHON |
