Vehicle Exploded View - APRILIA RS 50 RS4 50 2T E4 2018 (APAC-EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

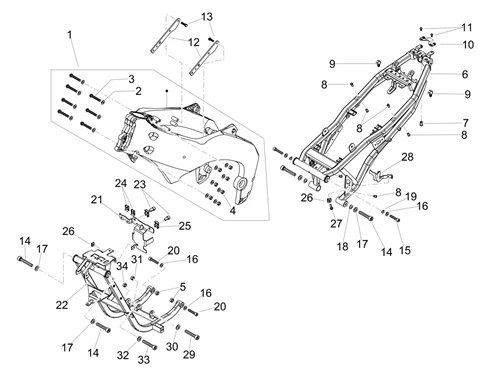

Chassis : 01.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/794/RS4_50_2T_E4_2018_(APAC-EMEA)_01.01.png)
1 |
89805500XH4 - CHASSIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
2 |
AP8150017 - RONDELLE More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/4/img/71954.jpg)
3 |
AP8152292 - VIS BRIDE More informationQuantity required : 7 |
||||||
|
4 |
AP8152350 - ECROU More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
5 |
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/4/1/1/img/142411.jpg)
6 |
SADDLE SUPPORT "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011> -2B002809 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/0/5/img/71205.jpg)
7 |
HEX THREADED INSERT "PIAGGIO GENUINE PART"COMMON TO MOTORBIKE RANGE -AP8102902- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/2/img/72142.jpg)
8 |
AP8201755 - RIVET FILETE More informationQuantity required : 6 |
||||||
|
9 |
AP8121882 - GUIDE-CABLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/4/0/img/40640.jpg)
10 |
REAR LIGHT SUPPORT BRACKET "PIAGGIO GENUINE PART" APRILIA 1000-1100 RSV-4, TUONO, 50-125 RS 2011> -858903 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
11 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298 More informationQuantity required : 2 |
||||||
|
12 |
865778A - CARTELA SOPTE.CULATA C/CATAF.GPR50 09 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
13 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/3/img/71813.jpg)
14 |
AP8150038 - VIS More informationQuantity required : 4 |
||||||
|
15 |
890638 - VIS More informationQuantity required : 2 |
||||||
|
16 |
AP8150017 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
17 |
AP8150020 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.jpg)
18 |
AP8150292 - RONDELLE ELASTIQUE COURBE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
19 |
SPRING WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150376 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/6/8/img/66568.jpg)
20 |
478761 - VIS More informationQuantity required : 2 |
||||||
|
21 |
2B004660 - PATTE More informationQuantity required : 1 |
||||||
|
22 |
8997974 - SUPPORT CHASSIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/5/img/66335.jpg)
23 |
SCREW - MULTI PURPOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -319165 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
24 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/4/img/67114.jpg)
25 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -575268 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
26 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
27 |
AP8152273 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
28 |
2B004895 - PATTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/0/4/img/64704.jpg)
29 |
SCREW - ENGINE FIXING SCREW M8 "PIAGGIO GENUINE PART" 50 VESPA LX, PRIMAVERA, SPRINT/GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02500272 More informationQuantity required : 1 |
||||||
|
30 |
AP8150017 - RONDELLE More informationQuantity required : 1 |
||||||
|
31 |
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300 More informationQuantity required : 1 |
||||||
|
32 |
AP8150020 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/4/8/img/64748.jpg)
33 |
SCREW - ENGINE FIXING SCREW "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H03000272 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
34 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440 More informationQuantity required : 1 |
