Vehicle Exploded View - APRILIA RS 50 RS4 50 2T E4 2018 (APAC-EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

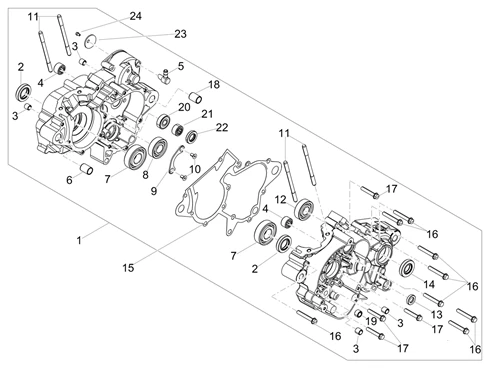

Moteur : 03.03 CARTERS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/794/RS4_50_2T_E4_2018_(APAC-EMEA)_03.03.png)
1 |
CM2865055 - CARTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/3/img/69413.jpg)
2 |
SEAL RING GASKET- FOR CRANSHAFT "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 RS 2006>, SX, RX -847020 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/8/img/69508.jpg)
3 |
CENTERING PIN FOR CRANKCASE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -847241 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/5/img/69485.jpg)
4 |
ROLLER BEARING FOR GEARBOX SECONDARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX, RS 2006> -847211 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/6/img/69416.jpg)
5 |
OIL BREATHER TUBE JOINT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -847024 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/5/img/69415.jpg)
6 |
CENTERING PIN FOR CRANKCASE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847023 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/5/img/69475.jpg)
7 |
CRANKSHAFT BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2003>/APRILIA 50 SX, RX, RS 2006> -847172 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/3/img/69483.jpg)
8 |
BEARING FOR GEARBOX PRIMARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -847209 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/4/img/69414.jpg)
9 |
PLATE FOR GEARBOX BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -847021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/9/img/127169.jpg)
10 |
SCREW - FOR GEARBOX "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -1A003116 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/5/0/img/70650.jpg)
11 |
CYLINDER STUD BOLT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -8772649 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/5/9/2/9/img/205929.jpg)
12 |
8470866 - BEARING More informationQuantity required : 1 |
||||||
|
12 |
8470866 - BEARING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/4/9/img/69449.jpg)
13 |
GASKET RING- CLUTCH CONTRAL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847075 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/2/img/69412.jpg)
14 |
GEARBOX OUTPUT SPROCKET O'RING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RX, SX, RS -847019 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/6/8/img/72668.jpg)
15 |
GASKET FOR ENGINE CRANKCASE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RX, SX -1A009969 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/2/2/img/72622.jpg)
16 |
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -B013042 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/1/6/img/151716.jpg)
17 |
1A011120 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/6/4/img/69464.jpg)
18 |
847097 - GOUJON (E.2) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
19 |
BRONZE RING Ø12XØ8X8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/MAXISCOOTER -431860 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/0/img/69410.jpg)
20 |
REAR WHEEL BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847016 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/0/9/img/69409.jpg)
21 |
ROLLER BEARING FOR BALANCE SHAFT "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>, RS-4 2010> -847013 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/1/img/69411.jpg)
22 |
GASKET RING- BALANCE SHAFT "PIAGGIO GENUINE PART" APRILIA 50 RS 2006> -847017 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/5/4/img/69554.jpg)
23 |
848019 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/3/7/img/72637.jpg)
24 |
B013529 - BOULON More informationQuantity required : 1 |
