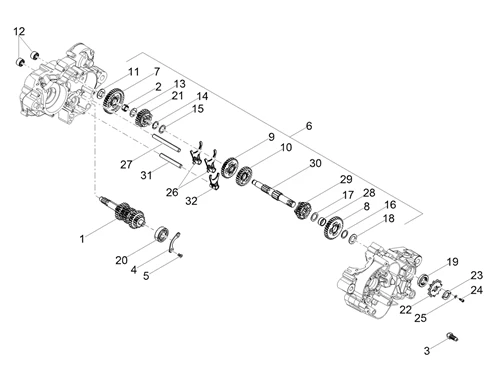

Vehicle Exploded View - APRILIA RS 50 RS4 50 2T E4 2018 (APAC-EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)
Moteur : 03.18 BOÎTE DE VITESSES - ENGRENAGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/794/RS4_50_2T_E4_2018_(APAC-EMEA)_03.18.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/7/img/69417.jpg)
1 |
GEARBOX SHAFT - PRIMARY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2010>/APRILIA 50 SX, RX, RS 2010> -847027 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/6/img/69526.jpg)
2 |
ROLLER BEARING FOR GEARBOX SECONDARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847544- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/8/3/img/146183.jpg)
3 |
NEUTRAL SWITCH "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -1A006087 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/4/img/69414.jpg)
4 |
PLATE FOR GEARBOX BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -847021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/9/img/127169.jpg)
5 |
SCREW - FOR GEARBOX "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -1A003116- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/8/img/69418.jpg)
6 |
GEARBOX SHAFT (SECONDARY-COMPLETE) "PIAGGIO GENUINE PART" APRILIA 50 RS, RX, SX/GILERA 50 SMT, RCR - 847028 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/6/8/img/69468.jpg)
7 |
1ST WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847153 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/2/img/69472.jpg)
8 |
2 ND WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847157 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/0/img/69470.jpg)
9 |
3 RD WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847155 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/1/img/69471.jpg)
10 |
4 ST WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847156 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/3/1/img/69531.jpg)
11 |
SECONDARY SHAFT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -847549- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/5/img/69485.jpg)
12 |
ROLLER BEARING FOR GEARBOX SECONDARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX, RS 2006> -847211- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/1/6/img/146216.jpg)
13 |
871708 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/5/img/69525.jpg)
14 |
SAFETY WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847542- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/3/0/img/69530.jpg)
15 |
847548 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/4/img/69524.jpg)
16 |
847541 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/8/img/69528.jpg)
17 |
847546 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/7/img/69527.jpg)
18 |
SECONDARY SHAFT WASHER (1,2X17X28) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RX, SX, RS, TUONO -847545- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/2/img/69412.jpg)
19 |
GEARBOX OUTPUT SPROCKET O'RING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RX, SX, RS -847019 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/3/img/69483.jpg)
20 |
BEARING FOR GEARBOX PRIMARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -847209- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/6/9/img/69469.jpg)
21 |
5 TH WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847154 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/2/2/img/69922.jpg)
22 |
GEARBOX OUPUT SPROCKET "PIAGGIO GENUINE PART" 50 A BOITE GILERA 50 SMT 2006>, RCR 2006>/APRILIA 50 RS 2006>, RS4 2011>, RX 2006>, SX 2006> 11 TEETH -86177R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/3/2/img/64732.jpg)
23 |
STEERING LOCK WASHER FOR OUTPUT GEARBOX PINION "PIAGGIO GENUINE PART" GILERA RCR, SMT 2006>/APRILIA 50 RS4 2011>, RS, RX, SX 2006> -00H02800421 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
24 |
SCREW - (4,70X10) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152043- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/1/img/71901.jpg)
25 |
AP8150535 - ROSETTA VENTAGLIO INT.A2 - M4 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/3/5/img/68935.jpg)
26 |
GEARBOX FORK- 2ND GEAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RX 2006>, SX 2006 -83073R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/0/img/69420.jpg)
27 |
847030 - AXE FOURCHE 2ERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/9/img/69529.jpg)
28 |
847547 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/3/img/69473.jpg)
29 |
6 TH WHEEL GEAR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847158 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/4/img/69474.jpg)
30 |
GEARBOX SHAFT - SECONDARY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -847159 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/9/img/69419.jpg)
31 |
GEARBOX SHAFT FORK AXLE - FOR 1ST GEAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RX 2006>, SX 2006 -847029- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/3/4/img/68934.jpg)
32 |
GEARBOX FORK- 1ST GEAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RX 2006>, SX 2006 -83072R- More informationQuantity required : 1 |
