Vehicle Exploded View - APRILIA RS 50 RS4 50 2T E4 2018 (APAC-EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

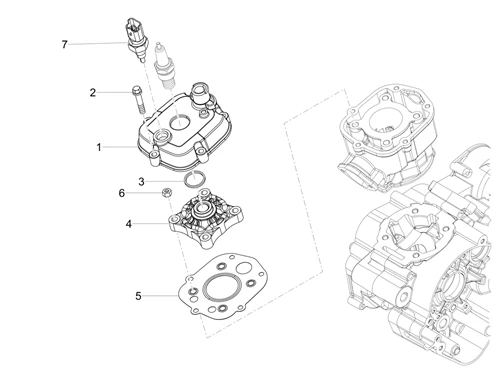

Moteur : 03.09 COUVRE-CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/794/RS4_50_2T_E4_2018_(APAC-EMEA)_03.09.png)
1 |
CM2869015 - COUVRE-CULASSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
2 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774 More informationQuantity required : 5 |
||||||
|
2 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/8/3/4/img/156834.jpg)
3 |
O'RING GASKET FOR CYLINDER HEAD "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RS4 2011>/GILERA 50 SMT, RCR 2006> -1A014908 More informationQuantity required : 1 |
||||||
|
3 |
O'RING GASKET FOR CYLINDER HEAD "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RS4 2011>/GILERA 50 SMT, RCR 2006> -1A014908 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/4/8/img/149148.jpg)
4 |
CYLINDER HEAD- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RS, SX, RX 2006> -1A0089765 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/9/6/img/70396.jpg)
5 |
CYLINDER HEAD GASKET "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2011>/APRILIA 50 RS 2011> -871725 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
6 |
NUT - TO HEAD/EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -436947- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/8/0/img/67880.jpg)
7 |
TEMPERATURE SENSOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER/GILERA 50 SMT, RCR 2018> -640485 More informationQuantity required : 1 |
