Vehicle Exploded View - APRILIA RS 50 RS4 50 2T E4 2018 (APAC-EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

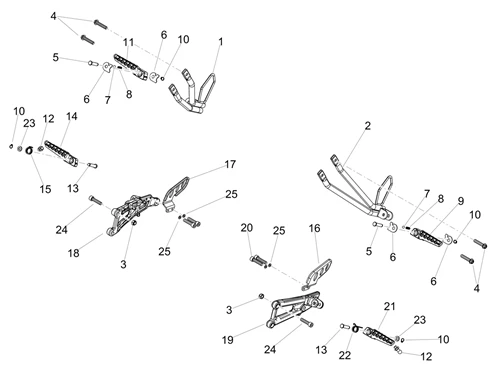

Chassis : 01.02 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/794/RS4_50_2T_E4_2018_(APAC-EMEA)_01.02.png)
1 |
2B004034 - SUPPORT R-P. PASS.DR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/7/3/7/img/145737.jpg)
2 |
FOOTREST SUPPORT- REAR LEFT "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011>2016 -2B004033 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/3/img/71883.jpg)
3 |
AP8150431 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/2/img/71952.jpg)
4 |
AP8152290 - VIS BRIDE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/1/img/109061.jpg)
5 |
CM228402 - PIVOT REPOSE-PIEDS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/6/5/8/img/41658.jpg)
6 |
890208 - PLAQUETTE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/3/img/71163.jpg)
7 |
BALL Ø6,35 - FOR FOOTREST "PIAGGIO GENUINE PART" APRILIA DORSODURO 750-900-1200, RS 50-125, RSV4 1000, TUONO 1000/ MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE -AP8101861 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
8 |
FOOTREST COMPRESS SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -AP8121133 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/9/7/img/71797.jpg)
9 |
LEFT PASSENGER FOOTREST "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO, 125 MX, RX, FUTURA, MOJITO -AP8146865 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/4/img/71404.jpg)
10 |
STOP RING FOR FOOTREST "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA +MOTO-GUZZI MOTORBIKE RANGE -AP8120573 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/9/6/img/71796.jpg)
11 |
RIGHT PASSENGER FOOTREST "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO, 125 MX, RX, FUTURA, MOJITO -AP8146864 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/8/img/71438.jpg)
12 |
AP8121134 - PIVOT FRICTION R-PIED More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/2/img/73402.jpg)
13 |
CM228401 - PIVOT REPOSE-PIEDS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/4/3/img/71643.jpg)
14 |
RIGHT RIDER FOOTREST "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO, 50 EUROPA, AF1 -AP8132957 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/0/1/img/71501.jpg)
15 |
SPRING FOR RIGHT PASSENGER FOOTREST "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO -AP8121939 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/6/3/img/70163.jpg)
16 |
866142 - PROTECT.ESTRIB.PILOTO IZ.GPR125 09 More informationQuantity required : 1 |
||||||
|
17 |
866141 - PROTECT.ESTRIB.PILOTO DR.GPR125 09 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/2/3/1/img/43231.jpg)
18 |
FOOTREST SUPPORT- FRONT RIGHT "PIAGGIO GENUINE PART" APRILIA 50-125 RS4 2011> -899557 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/2/3/2/img/43232.jpg)
19 |
FOOTREST SUPPORT- FRONT LEFT "PIAGGIO GENUINE PART" APRILIA 50-125 RS4 2011> -899558 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
20 |
AP8152272 - VIS BRIDE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/4/4/img/71644.jpg)
21 |
LEFT RIDER FOOTREST "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO, 50 EUROPA, AF1 -AP8132958 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/0/2/img/71502.jpg)
22 |
RETURN SPRING FOR RIDER FOOTREST (LEFT) "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO -AP8121940 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/6/img/71406.jpg)
23 |
AP8120592 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/3/img/71823.jpg)
24 |
AP8150107 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/5/img/71805.jpg)
25 |
AP8150012 - RONDELLE More informationQuantity required : 2 |
