Vehicle Exploded View - DERBI SENDA R 50 Senda R 50 X-Race 3ª ed E2 2005 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

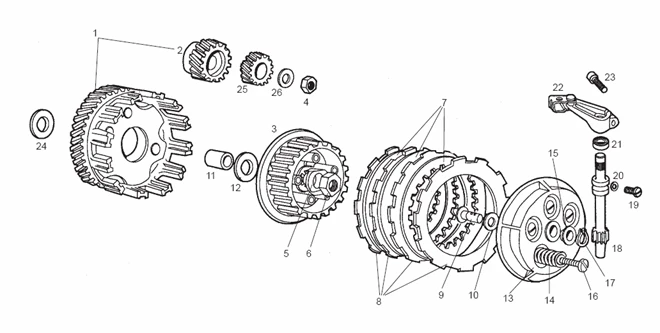

Tables : 14 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1087/Senda_R_50_X-Race_3_ed_E2_2005_EMEA_14.png)
1 |
00H03603521 - CLOCHE EMBRAYAGE AVEC PIGNON More informationQuantity required : 1 |
||||||
|
2 |
00H02601381 - PIGNON PRIMAIRE Z-22 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/8/img/69428.jpg)
3 |
CLUTCH PRESSURE PLATE"PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 RS 2006>, SX, RX -847045 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/1/7/img/64717.jpg)
4 |
NUT -FOR CRANKSHAFT PINION "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2003 -00H02600401 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/0/8/img/70608.jpg)
5 |
CLUTCH LOCKING WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/DERBI 50 SENDA, GPR -876418 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/2/img/69492.jpg)
6 |
NUT - FOR CLUTCH NUT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -847221 More informationQuantity required : 1 |
||||||
|
7 |
00H02600151 - DISQUE EMBRAYAGE LISSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/7/img/69427.jpg)
8 |
DRIVEN CLUTCH DISC "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847044 More informationQuantity required : 1 |
||||||
|
9 |
00H02600271 - CREMAILLETE D,EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/3/img/69493.jpg)
10 |
CLUTCH PLATE BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847222 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/6/5/img/66965.jpg)
11 |
CLUTCH DRUM "PIAGGIO GENUINE PART" GILERA 50 SMT 2006>, RCR 2006>/APRILIA 50 SX 2006>, RX 2006>, RS 2006>/DERBI 50 SENDA 2006> (NEEDS PINION FOR EURO 2 MODEL) -497643 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/5/6/9/img/187569.jpg)
12 |
00D02600552 - RONDELLE ETOILEE More informationQuantity required : 1 |
||||||
|
13 |
00H02600181 - PLATEAU EXTERIEUR D,EMBRAYA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/3/0/img/69430.jpg)
14 |
CLUTCH PLATE SPRING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847047 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/5/img/69495.jpg)
15 |
WASHER FOR CLUTCH PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847224 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/3/1/img/69431.jpg)
16 |
SCREW - FOR CLUTCH PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -847048 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/2/img/63602.jpg)
17 |
CIRCLIP FOR CLUTCH CONTROL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00000047110 More informationQuantity required : 1 |
||||||
|
18 |
00H02610311 - AXE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/1/6/img/64716.jpg)
19 |
00H02600342 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/8/img/64838.jpg)
20 |
00H03800441 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/4/9/img/69449.jpg)
21 |
GASKET RING- CLUTCH CONTRAL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847075 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/7/0/img/73270.jpg)
22 |
CLUTCH RELEASE SHAFT "PIAGGIO GENUINE PART" 50 APRILIA RS4 2011> -CM151201 More informationQuantity required : 1 |
||||||
|
23 |
AP8152060 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/1/img/69491.jpg)
24 |
CLUTCH WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX, RS -847218 More informationQuantity required : 1 |
||||||
|
25 |
00H03800181 - PIGNON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/1/5/img/69515.jpg)
26 |
BALANCE SHAFT WASHER "PIAGGIO GENUINE PART" APRILIA 50 RS 2006> -847276 More informationQuantity required : 1 |
