Vehicle Exploded View - DERBI SENDA R 50 Senda R 50 X-Race 3ª ed E2 2005 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

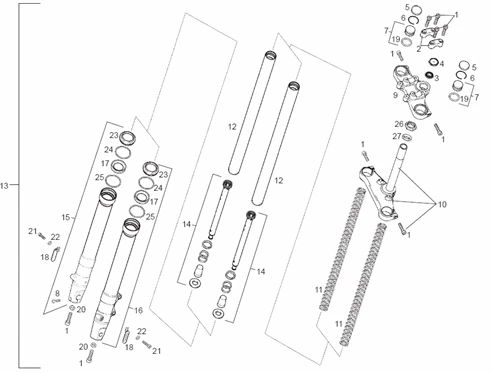

Tables : 2 FOURCHE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1087/Senda_R_50_X-Race_3_ed_E2_2005_EMEA_2.png)
1 |
00000004830 - BOULON TETE HEX.8M125X30 D933 More informationQuantity required : 1 |
||||||
|
2 |
00H00209741 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/7/6/img/64176.jpg)
3 |
NUT COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H00202761 More informationQuantity required : 1 |
||||||
|
4 |
00H00206601 - ECROU More informationQuantity required : 1 |
||||||
|
5 |
600136 - BOUCHON FOURCHE More informationQuantity required : 1 |
||||||
|
6 |
AP8123697 - BAGUE DE BUTEE; More informationQuantity required : 1 |
||||||
|
7 |
600121 - BOULON FOURCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/4/0/img/66340.jpg)
8 |
323990 - TENDEUR More informationQuantity required : 1 |
||||||
|
9 |
00H00221091 - ETRIER FIX. GUIDON More informationQuantity required : 1 |
||||||
|
10 |
00H00220011 - PLATINE INF. AVEC PIVOT More informationQuantity required : 1 |
||||||
|
11 |
00H00219171 - RESSORT DE FOURCHE More informationQuantity required : 1 |
||||||
|
12 |
00H00208191 - BARRE DE FOURCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/4/2/img/69842.jpg)
13 |
FRONT FORK "PIAGGIO GENUINE PART" GILERA 50 RCR 2006> -86121R- More informationQuantity required : 1 |
||||||
|
14 |
00H00211531 - TUBE HYDRAULIQUE More informationQuantity required : 1 |
||||||
|
15 |
00H02017031 - BOUCHON DROITE More informationQuantity required : 1 |
||||||
|
16 |
00H02025041 - BOUCHON GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/2/img/67412.jpg)
17 |
FORK OIL SEAL MARZOCCHI "PIAGGIO GENUINE PART" APRILIA 125 ATLANTIC, SCARABEO, LEONARDO, 50 RS, SX, RX -600126 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/1/6/img/64616.jpg)
18 |
REFLECTOR - ON FORK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H01802081 More informationQuantity required : 1 |
||||||
|
19 |
00H00202451 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/6/img/63596.jpg)
20 |
00000031080 - ROND. PLATE MECANISEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/6/4/img/63664.jpg)
21 |
00008061500 - VIS A TETE RONDE 6M100X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/6/img/63726.jpg)
22 |
00031106000 - RONDELLE PLATE D6 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/3/img/67413.jpg)
23 |
FORK DUST COVER - "PIAGGIO GENUINE PART" 125 X9 2003>2005/APRILIA 125-250-300-400-500 ATLANTIC, 125-250 SCARABEO, 125-250 LEONARDO50 MX, RS 1999>2005, RX 1995>2004 -600127 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/1/img/67411.jpg)
24 |
600125 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
25 |
600128 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/4/img/63924.jpg)
26 |
NUT - FOR UPPER FORK PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00G00200112 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/6/8/img/63868.jpg)
27 |
00D00200761 - CACHE POUSSIERE DIRECTION More informationQuantity required : 1 |
