Vehicle Exploded View - DERBI SENDA R 50 Senda R 50 X-Race 3ª ed E2 2005 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

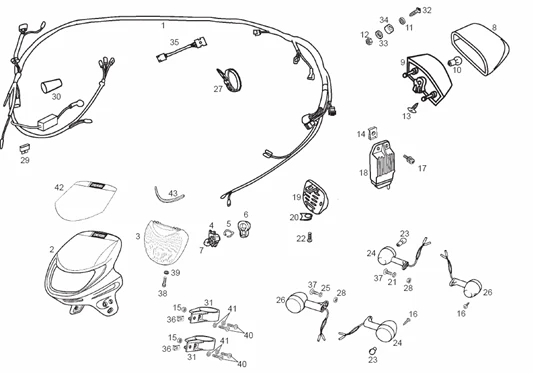

Tables : 7 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1087/Senda_R_50_X-Race_3_ed_E2_2005_EMEA_7.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/9/0/img/64390.jpg)
1 |
CABLE BUNDLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2010 -00H01046301 More informationQuantity required : 1 |
|||||||||
2 |
00H02258876 - PLAQUE PHARE More informationQuantity required : 1 |
|||||||||
|
2 |
00H02258873 - DECAL DE PLAQUE PHARE More informationQuantity required : 1 |
|||||||||
|
3 |
00H01012011 - OPTIQUE COMPLETE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/1/img/63641.jpg)
4 |
BULB HOLDER - FOR HEADLAMP - "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00003710110 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/2/img/63642.jpg)
5 |
SPRING FOR BULB HOLDER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00003710120 More informationQuantity required : 1 |
|||||||||
|
6 |
00D05700141 - R-PROT.PORTE-LAMPES PHARE F More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/2/img/65942.jpg)
7 |
LIGHT BULB FOR HEADLAMP 12V-35/35W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -219528 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/8/3/img/64383.jpg)
8 |
TAILLIGHT- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2009 -00H01006321 More informationQuantity required : 1 |
|||||||||
|
9 |
TAILLIGHT- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2009 -00H01006321 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/6/6/img/64366.jpg)
10 |
BULB 12V 21/5W "PIAGGIO GENUINE PART" COMMON TO THE RANGE -00H01000371 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/4/0/img/64840.jpg)
11 |
00H03800722 - RONDELLE More informationQuantity required : 1 |
|||||||||
|
12 |
|
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/5/7/img/63957.jpg)
13 |
SCREW - FOR TAIL LAMP LENS "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR 2006>2010 -00G01001571 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
14 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
15 |
020105 - ECROU S02010500 More informationQuantity required : 1 |
|||||||||
|
16 |
00011021300 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/5/img/63895.jpg)
17 |
00D05910081 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/8/8/img/70888.jpg)
18 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2015/APRILIA 50 RS 2006>2016, RX, SX 2006>2016 (RED VERSION) -898891 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/8/2/img/64382.jpg)
19 |
HORN "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H01005311 More informationQuantity required : 1 |
|||||||||
|
20 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/6/img/63726.jpg)
21 |
00031106000 - RONDELLE PLATE D6 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/6/img/63696.jpg)
22 |
00012061200 - VIS A TETE RONDE A FENTES C More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
23 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332 More informationQuantity required : 1 |
|||||||||
|
24 |
00H01703301 - GLIGNOTEURS AR. DROITE More informationQuantity required : 1 |
|||||||||
|
25 |
00031106000 - RONDELLE PLATE D6 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/9/5/img/64595.jpg)
26 |
FLASHER-REAR-LEFT/FRONT- RIGHT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2000>2009 -00H01703391 More informationQuantity required : 1 |
|||||||||
|
27 |
RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
28 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060 More informationQuantity required : 1 |
|||||||||
|
29 |
00H01001911 - FUSIBLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/8/4/img/64684.jpg)
30 |
PROTECTION FOR ELECTRIC BUNDLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -00H02300961 More informationQuantity required : 1 |
|||||||||
|
31 |
00H04612841 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/4/img/63644.jpg)
32 |
00004053500 - VIS A TETE ALLEN 5M80X50 More informationQuantity required : 1 |
|||||||||
|
32 |
AP8150051 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/7/6/img/64376.jpg)
33 |
SPACER- FOR STOP LIGHT SWITCH/REAR BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART" GILERA 50 SMT/APRILIA 50 RS -00H01002821 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/5/1/img/65051.jpg)
34 |
SILENTBLOC FOR TAIL LIGHT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H06800461 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/9/7/img/64997.jpg)
35 |
DASHBOARD TIMER "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX -00H05700481 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
36 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462 More informationQuantity required : 1 |
|||||||||
|
37 |
00008062000 - BOULON BOMBEE ALLEN 6M100X20 More informationQuantity required : 1 |
|||||||||
|
38 |
|
|||||||||
|
39 |
00H03800722 - RONDELLE More informationQuantity required : 1 |
|||||||||
|
40 |
00008051600 - BOULON BOMBEE ALLEN 5M80X16 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
41 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226 More informationQuantity required : 1 |
|||||||||
|
42 |
00H01534236 - DECAL DE PLAQUE PHARE More informationQuantity required : 1 |
|||||||||
|
42 |
00H01534234 - DECAL DE PLAQUE PHARE More informationQuantity required : 1 |
|||||||||
|
43 |
00H05701101 - BUTEE PHARE More informationQuantity required : 1 |
|||||||||
