Vehicle Exploded View - DERBI SENDA R 50 Senda R 50 X-Race 3ª ed E2 2005 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

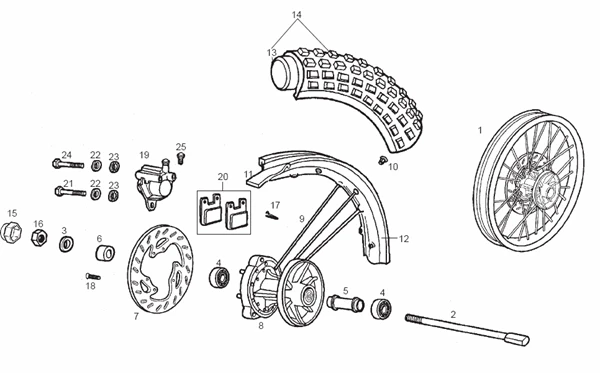

Tables : 8 ROUE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1087/Senda_R_50_X-Race_3_ed_E2_2005_EMEA_8.png)
1 |
866178 - ROUE AVT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/3/1/img/64431.jpg)
2 |
FRONT WHEEL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> SPOKED WHEELS -00H01203272 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/8/9/img/68489.jpg)
3 |
709037 - RONDELLE More informationQuantity required : 1 |
||||||
|
3 |
709037 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/0/img/69410.jpg)
4 |
REAR WHEEL BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847016 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/8/1/img/67481.jpg)
4 |
REAR WHEEL BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT 2011> -601345 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/8/img/63878.jpg)
5 |
00D01300091 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/1/img/63671.jpg)
6 |
SPACER- FOR FRONT WHEEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00008213182 More informationQuantity required : 1 |
||||||
|
7 |
00H01209021 - DISQUE FREIN AVANT More informationQuantity required : 1 |
||||||
|
8 |
00H01205711 - MOYEU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/3/9/img/64439.jpg)
9 |
FRONT WHEEL SPOKE "PIAGGIO GENUINE PART" GILERA 50 RCR/APRILIA 50 RX -00H01206061 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/2/7/img/63627.jpg)
10 |
NUT - FOR SPOKE "PIAGGIO GENUINE PART" GILERA SMT, RCR/APRILIA 50 SX, RX -00002212070 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/7/img/63877.jpg)
11 |
00D01201091 - PROTECTEUR DE CHAMBRE A AIR More informationQuantity required : 1 |
||||||
|
12 |
FRONT RIM "PIAGGIO GENUINE PART" GILERA 50 RCR 2006> 00H01212082- More informationQuantity required : 1 |
||||||
|
13 |
00H01206101 - CHAMBRE A AIR More informationQuantity required : 1 |
||||||
|
14 |
00H01208111 - PNEU AV. VEE RUBBER 80/90-21 48P V122 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/2/9/img/64429.jpg)
15 |
00H01202331 - PROTECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/3/img/63763.jpg)
16 |
NUT - FOR FRONT WHEEL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> ROUES A RAYONS -00232120032- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/6/7/img/64467.jpg)
17 |
BRAKE PAD SPRING "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX -00H01301831 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/5/9/img/151759.jpg)
18 |
2B004560 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/2/7/img/64427.jpg)
19 |
FRONT BRAKE CALIPER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H01202193- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/2/5/img/64125.jpg)
20 |
BRAKE PADS - "PIAGGIO GENUINE PART" GILERA 50 SMT FRONT+AR, RCR FRONT+REAR /APRILIA 50 RS REAR, RX REAR, SX REAR (AJP) -00G04700141 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/1/img/63711.jpg)
21 |
00022083021 - VIS T. CREUSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/7/img/63787.jpg)
22 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/1/img/63731.jpg)
23 |
00034000802 - ZONDELLE EVENTAIL INT. D8 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/4/img/63724.jpg)
24 |
00031086022 - VIS T. CREUSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/4/5/img/70045.jpg)
25 |
SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RS -864123 More informationQuantity required : 1 |
