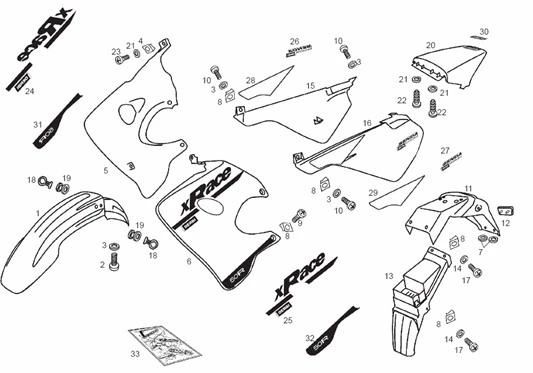

Vehicle Exploded View - DERBI SENDA R 50 Senda R 50 X-Race 3ª ed E2 2005 (EMEA)

	P2R reference	191025
	Maker reference	00H00714023

00H00714023 - GARDE-BOUE AVANT RGE

	P2R reference	191026
	Maker reference	00H00714024

00H00714024 - GARDE-BOUE AVANT RGE

	P2R reference	63704
	Maker reference	000121616005

SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600

	P2R reference	63876
	Maker reference	00D01200171

WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462

	P2R reference	191044
	Maker reference	00H04437803

00H04437803 - COUVERTURE AV.DROIT

	P2R reference	191045
	Maker reference	00H04437805

00H04437805 - COUVERCLE

	P2R reference	191046
	Maker reference	00H04437885

00H04437885 - COUVERCLE

	P2R reference	191047
	Maker reference	00H04437883

00H04437883 - COUVERTURE AV.GAUCHE

	P2R reference	69844
	Maker reference	861239

WASHER FOR FAIRINGS Ø 5 STAINLESS "PIAGGIO GENUINE PART" APRILIA 50 RS/GILERA 50 SMT, RCR -861239

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

	P2R reference	63992
	Maker reference	00G01503701

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701

	P2R reference	63704
	Maker reference	000121616005

SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600

	P2R reference	64299
	Maker reference	00H00712341

MUDGUARD - REAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H00712341

	P2R reference	64118
	Maker reference	00G04400752

REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2009 -00G04400752

	P2R reference	64293
	Maker reference	00H00705121

REAR MUDGUARD - INNER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H00712341

	P2R reference
	Maker reference	031059

BOULON S03105900

	P2R reference	191048
	Maker reference	00H00556692

00H00556692 - PLAQUE LATERAL DROITE AVEC

	P2R reference	191049
	Maker reference	00H00556696

00H00556696 - PLAQUE LATERAL DROITE AVEC

	P2R reference	191050
	Maker reference	00H00556706

00H00556706 - FLANC LAT.G.AVEC DECAL

	P2R reference	191051
	Maker reference	00H00556702

00H00556702 - FLANC LAT.G.AVEC DECAL

	P2R reference	63704
	Maker reference	000121616005

SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600

	P2R reference	64668
	Maker reference	00H02201591

FRONT BRAKE CABLE FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00H02201591

	P2R reference	63881
	Maker reference	00D01500021

RUBBER SPACER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00D01500021

	P2R reference	188484
	Maker reference	00H00608165

00H00608165 - COLIN AZUL 2002 SD.DRD

	P2R reference	188416
	Maker reference	00H00609164

00H00609164 - COUVRE-SELLE

	P2R reference	69496
	Maker reference	847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226

	P2R reference	63681
	Maker reference	000110514015

SCREW - (5,1X14) FOR FAIRINGS ASSEMBLY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00011051401

	P2R reference	63703
	Maker reference	000121520005

SCREW - DASHBOARD MOUNTING "PIAGGIO GENUINE PART" GILERA SMT <2017 (M5X20) -00012152000

	P2R reference	188485
	Maker reference	00H04925564

00H04925564 - ADHESIF

	P2R reference	188486
	Maker reference	00H04925565

00H04925565 - ADHESIF

	P2R reference	188487
	Maker reference	00H04925574

00H04925574 - ADHESIF

	P2R reference	188488
	Maker reference	00H04925575

00H04925575 - ADHESIF

	P2R reference	191052
	Maker reference	00H00526651

00H00526651 - ADHESIF

	P2R reference	191053
	Maker reference	00H00528641

00H00528641 - ADHESIF

	P2R reference	188493
	Maker reference	00H00519651

00H00519651 - ADHESIF

	P2R reference	188494
	Maker reference	00H00519655

00H00519655 - ADHESIF

	P2R reference	188496
	Maker reference	00H00526645

00H00526645 - ADHESIF

	P2R reference	188495
	Maker reference	00H00526641

00H00526641 - ADHESIF

	P2R reference	187994
	Maker reference	00H00611521

00H00611521 - ADHESIF DERBI

	P2R reference	191054
	Maker reference	00H04611093

00H04611093 - ADHESIF

	P2R reference	191055
	Maker reference	00H04611094

00H04611094 - ADHESIF

	P2R reference	191056
	Maker reference	00H04611103

00H04611103 - ADHESIF

	P2R reference	191057
	Maker reference	00H04611104

00H04611104 - ADHESIF

	P2R reference	191058
	Maker reference	00H05168652

00H05168652 - JEU ADHESIF

	P2R reference	191059
	Maker reference	00H05168651

00H05168651 - JEU ADHESIF
