Vehicle Exploded View - APRILIA SR 200 SR COMPACT GT 200 E5 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

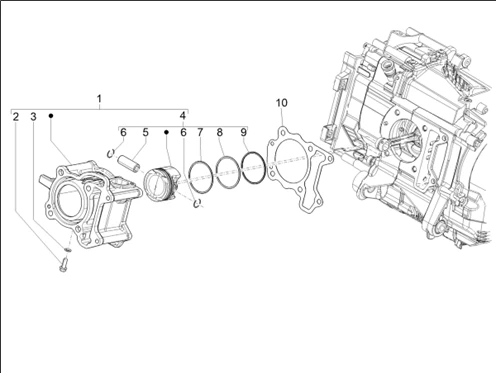

Moteur : 03.15 CYLINDRE - PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1165/SR_COMPACT_GT_200_E5_2021_(EMEA)_03.15.png)
1 |
|
||||||
|
2 |
1A004277 - VIS M6X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/5/5/6/img/139556.jpg)
3 |
1A004280 - RONDELLE More informationQuantity required : 1 |
||||||
|
4 |
1A0218760A - PISTON-P. PIN-RINGS GROUP 174 (SPARE P. More informationQuantity required : 1 |
||||||
|
4 |
1A0218760B - PISTON-P. PIN-RINGS GROUP 174 (SPARE P. More informationQuantity required : 1 |
||||||
|
4 |
1A0218760C - PISTON-P. PIN-RINGS GROUP 174 (SPARE P. More informationQuantity required : 1 |
||||||
|
4 |
1A0218760D - PISTON-P. PIN-RINGS GROUP 174 (SPARE P. More informationQuantity required : 1 |
||||||
|
5 |
1A014567 - PISTON PIN More informationQuantity required : 1 |
||||||
|
6 |
B015602 - CIRCLIPS More informationQuantity required : 2 |
||||||
|
7 |
1A019691 - COMPRESSION RING (1ST HOUSING) More informationQuantity required : 1 |
||||||
|
8 |
1A019692 - COMPRESSION RING (2ND HOUSING) More informationQuantity required : 1 |
||||||
|
9 |
1A019693 - OIL CONTROL RING (3RD HOUSING) More informationQuantity required : 1 |
||||||
|
10 |
1A019141 - JOINT CYLINDRE/CARTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/6/8/img/139468.jpg)
10 |
1A000750 - JOINT CYLIND/CARTER 0,4 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/6/9/img/139469.jpg)
10 |
1A000751 - JOINT CYLIND/CARTER 0,6 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/7/9/9/img/195799.jpg)
10 |
1A019140 - JOINT CYLINDRE/CARTER More informationQuantity required : 1 |
