Vehicle Exploded View - APRILIA SR 200 SR COMPACT GT 200 E5 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

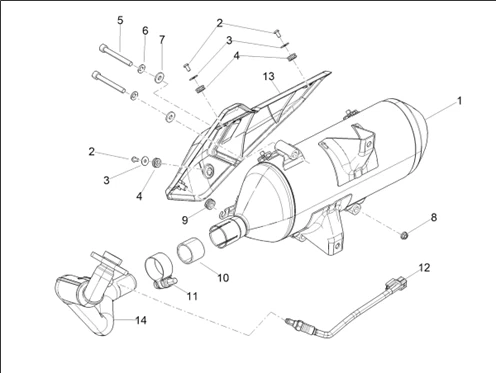

Moteur : 03.33 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1165/SR_COMPACT_GT_200_E5_2021_(EMEA)_03.33.png)
1 |
1A019655 - MUFFLER BODY ASSY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/7/3/img/68173.jpg)
2 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -651014- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/6/img/68676.jpg)
3 |
EXHAUST FLAT WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -827526- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/4/img/66744.jpg)
4 |
FAIRLEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -487665 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/4/img/69354.jpg)
5 |
SCREW - FOR EXHAUST MOUNTING "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, TYPHOON, ZIP/GILERA 50 STALKER, DNA -845590 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
6 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/7/0/img/69570.jpg)
7 |
More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
8 |
NUT - TO HEAD/EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -436947- More informationQuantity required : 2 |
||||||
|
9 |
B013302 - PASSECABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/6/img/68596.jpg)
10 |
GRAPHITE BUSHING FOR SILENCER "PIAGGIO GENUINE PART" PIAGGIO 125-250-300 MP3, VESPA GTS, BEVERLY, X8, X9, X7, X-EVOGILERA 125-250-300 NEXUS/APRILIA 125-250 ATLANTIC, SPORT-CITY, SR-MAX -8263885- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/3/3/img/69333.jpg)
11 |
SILENCER CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE 125-250-300 -8449404- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/6/1/5/img/171615.jpg)
12 |
1A014335 - LAMBDA SENSOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/1/4/img/195814.jpg)
13 |
1A020499 - THERMAL PROTECTION More informationQuantity required : 1 |
||||||
|
14 |
1A021443 - EXHAUST MANIFOLD WITH I.P. More informationQuantity required : 1 |
