Vehicle Exploded View - APRILIA SR 200 SR COMPACT GT 200 E5 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

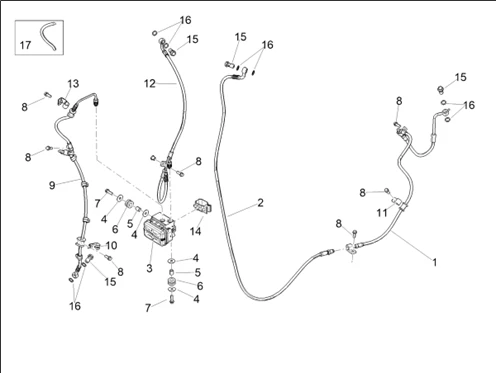

Système de freinage : 06.05 SYSTÈME FREIN ABS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1165/SR_COMPACT_GT_200_E5_2021_(EMEA)_06.05.png)
1 |
1C005438 - TUYAU FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
2 |
1C005535 - TUYAU FREIN More informationQuantity required : 1 |
||||||
|
3 |
1C005821 - CENTRALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/6/img/65356.jpg)
4 |
013092 - RONDELLE S01309200 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/3/img/66123.jpg)
5 |
SPACER- "PIAGGIO GENUINE PART" COMMON TO THE RANGE -273288- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/4/img/67134.jpg)
6 |
FAIRLEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -576565 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
7 |
018639 - VIS More informationQuantity required : 2 |
||||||
|
8 |
1C001475 - VIS BRIDE More informationQuantity required : 6 |
||||||
|
9 |
1C005401 - DURIT DE FREIN ETRIER-HECU More informationQuantity required : 1 |
||||||
|
10 |
1C001420 - COLLIER More informationQuantity required : 1 |
||||||
|
11 |
598795 - COLLIER More informationQuantity required : 1 |
||||||
|
12 |
1C005400 - FRONT BRAKE HOLE - ABS UNIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/6/4/img/86964.jpg)
13 |
649502 - COLLIER More informationQuantity required : 1 |
||||||
|
14 |
CM006906 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/5/5/img/127555.jpg)
15 |
1C002059R - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
16 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927- More informationQuantity required : 8 |
||||||
|
17 |
raw material |
