Vehicle Exploded View - APRILIA SR 200 SR COMPACT GT 200 E5 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

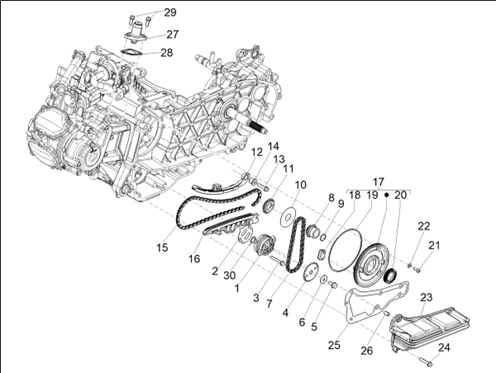

Moteur : 03.19 LUBRIFICATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1165/SR_COMPACT_GT_200_E5_2021_(EMEA)_03.19.png)
1 |
B017915 - POMPE HUILE COMPLETE More informationQuantity required : 1 |
||||||
|
2 |
B015460 - JOINT More informationQuantity required : 1 |
||||||
|
3 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/2/img/66182.jpg)
4 |
287913 - COURONNE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
5 |
B016426 - VIS TEF M6X14 More informationQuantity required : 1 |
||||||
|
6 |
B015991 - BELLEVILLE RESSORT More informationQuantity required : 1 |
||||||
|
7 |
B015459 - CHAINE POMPE HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/3/img/68703.jpg)
8 |
OIL PUMP DRIVING GEAR "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -82783R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/8/2/img/72682.jpg)
9 |
B015451 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
10 |
1A018661 - RONDELLE JOINT-SPI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/0/img/68700.jpg)
11 |
82782R - PIGNON DISTR. More informationQuantity required : 1 |
||||||
|
12 |
1A019017 - TGE TENDEUR DE CHAINE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/0/2/img/75302.jpg)
13 |
1A000350 - VIS M6X25 More informationQuantity required : 1 |
||||||
|
14 |
B015445 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/0/2/img/195802.jpg)
15 |
1A019980 - SILENT TIMING CHAIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/6/2/0/img/139620.jpg)
16 |
1A006294 - SUPPORT CHAINE DESSOUS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/8/7/img/139387.jpg)
17 |
1A0033175 - COUVERCLE DISTRIBUTEUR More informationQuantity required : 1 |
||||||
|
18 |
434345 - TAMPON. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/8/1/img/72681.jpg)
19 |
B015449 - BAGUE D'!TANCH!ITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/7/7/img/127277.jpg)
20 |
1A005743 - CIRCLIPS 24.35.7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/7/img/72707.jpg)
21 |
B016455 - VIS More informationQuantity required : 3 |
||||||
|
22 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/5/1/5/img/94515.jpg)
23 |
B013437 - CUVETTE OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
24 |
SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792- More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/5/5/2/img/94552.jpg)
25 |
B014152 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
26 |
CENTERING PIN (7,5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -277916- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/7/7/3/img/177773.jpg)
27 |
1A018752 - COMPLETE CHAIN TIGHTENER SUPPORT More informationQuantity required : 1 |
||||||
|
28 |
1A020205 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/0/3/img/75303.jpg)
29 |
1A000351 - VIS M6X20 More informationQuantity required : 2 |
||||||
|
30 |
434317 - SPRING RING More informationQuantity required : 1 |
