Vehicle Exploded View - APRILIA SR 200 SR COMPACT GT 200 E5 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

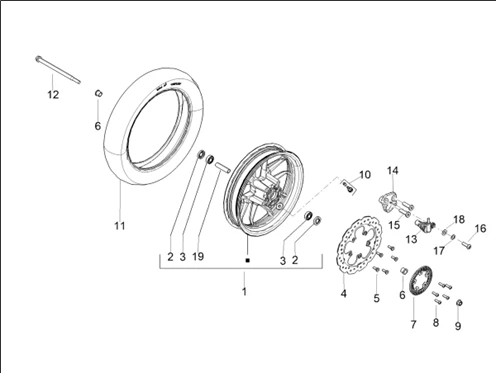

Roues : 05.010 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1165/SR_COMPACT_GT_200_E5_2021_(EMEA)_05.010.png)
1 |
1C00544150090 - FRONT WHEEL WITH BEARINGS More informationQuantity required : 1 |
||||||
|
1 |
1C005441500R01 - FRONT WHEEL WITH BEARINGS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/0/7/img/127507.jpg)
2 |
1C001322 - CIRCLIPS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/2/img/68102.jpg)
3 |
FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -649910 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/2/9/img/195829.jpg)
4 |
1C005456 - DISQUE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/3/8/7/img/174387.jpg)
5 |
1C005191 - CHEESE-HEADED SOCKET SCREW More informationQuantity required : 5 |
||||||
|
6 |
1C006015 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
7 |
1C004633 - ROUE PHONIQUE ABS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/6/5/4/8/img/166548.jpg)
8 |
1C004053 - VIS A TETE BOMBEE TORX More informationQuantity required : 5 |
||||||
|
9 |
1C006292 - ÉCROU AUTO-FREINE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
10 |
597679 - TUBELESS VALVE More informationQuantity required : 1 |
||||||
|
11 |
1C006137 - PNEUMATIQUE More informationQuantity required : 1 |
||||||
|
11 |
1C006139 - PNEUMATIQUE More informationQuantity required : 1 |
||||||
|
12 |
CM279904 - ARBRE DE ROUE AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
13 |
1D003350 - ACTIVE ABS WHEEL SPEED SENSOR More informationQuantity required : 1 |
||||||
|
14 |
1C005879 - ABS SENSOR SUPPORT PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/1/6/img/151116.jpg)
15 |
5A000656 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/2/8/img/70728.jpg)
16 |
880285 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/5/3/8/img/90538.jpg)
17 |
669282 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
18 |
006975 - RONDELLE S00697500 More informationQuantity required : 1 |
||||||
|
19 |
1C000977 - SPACER More informationQuantity required : 1 |
