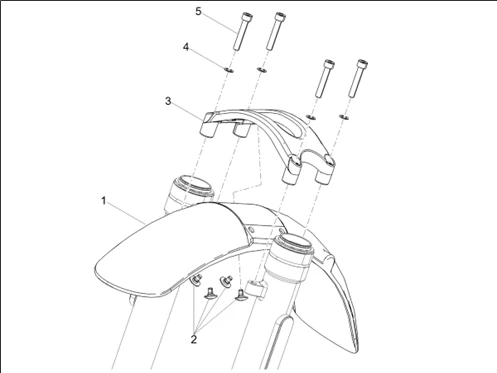

Carrosserie : 02.03 GARDE-BOUE AV.-EMBASEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1304/V7_Stone_850_E5_ABS_2025_(EMEA)_02.03.png)
1 |
88663400D26 - GARDE-BOUE AVANT BLEU More informationQuantity required : 1 |
||||||
|
1 |
88663400XN6 - GARDE-BOUE AVANT NOIR More informationQuantity required : 1 |
||||||
|
1 |
886634 - PARAFANGO ANTERIORE GREZZO More informationQuantity required : 1 |
||||||
|
2 |
2B004825 - VIS More informationQuantity required : 4 |
||||||
|
3 |
2B007933 - BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
4 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 4 |
||||||
|
5 |
GU98690445 - VIS M8X45 More informationQuantity required : 4 |
