Vehicle Exploded View - MOTO-GUZZI V7 750 V7 Stone 850 E5+ ABS 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

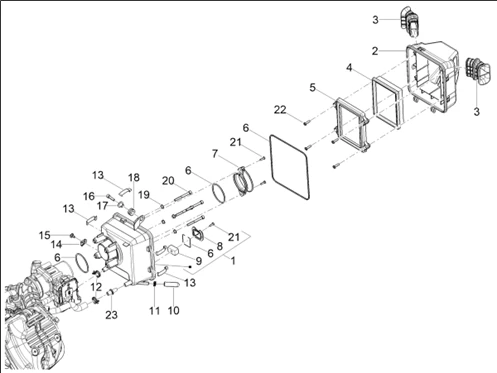

Moteur : 03.05 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1304/V7_Stone_850_E5_ABS_2025_(EMEA)_03.05.png)
1 |
2B014704 - COUVERCLE CORPS FILTRE More informationQuantity required : 1 |
||||||
|
2 |
2B013588 - BOITE FILTRE More informationQuantity required : 1 |
||||||
|
3 |
2B011835 - INTAKE MANIFOLD More informationQuantity required : 2 |
||||||
|
4 |
2B013724 - FILTRE AIR More informationQuantity required : 1 |
||||||
|
5 |
2B013586 - SUPORT FILTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/8/img/71408.jpg)
6 |
AP8120615 - JOINT More informationQuantity required : 4 |
||||||
|
7 |
2B004959 - MANCHON More informationQuantity required : 1 |
||||||
|
8 |
2B013706 - COUVERCLE D'EVENT DE L'HUILE More informationQuantity required : 1 |
||||||
|
9 |
B063477 - FILTRO BLOW-BY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/0/5/img/72005.JPG)
10 |
AP8161054 - TUBETTO SCARICO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/2/img/71182.jpg)
11 |
AP8102520 - COLLIER SERR. TUBE More informationQuantity required : 1 |
||||||
|
12 |
CM002912 - COLLIER More informationQuantity required : 2 |
||||||
|
13 |
622236 - RESSORT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
14 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
15 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8150500- More informationQuantity required : 1 |
||||||
|
16 |
GU98682325 - VIS TCEI M6X25 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
17 |
AP8221023 - "DOUILLE EN ""T"" *" More informationQuantity required : 1 |
||||||
|
18 |
GU91551010 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
19 |
887282 - BUSSOLA A T More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/6/img/71816.jpg)
20 |
AP8150045 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/5/img/71975.jpg)
21 |
AP8152351 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
22 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 4 |
||||||
|
23 |
2B014986 - RESTRICTION TUYAU BLOW-BY More informationQuantity required : 1 |
