Vehicle Exploded View - MOTO-GUZZI V7 750 V7 Stone 850 E5+ ABS 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

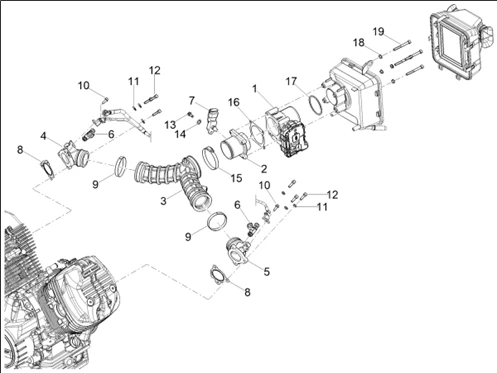

Moteur : 03.06 CORPS À PAPILLON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1304/V7_Stone_850_E5_ABS_2025_(EMEA)_03.06.png)
1 |
1A023630 - THROTTLE BODY More informationQuantity required : 1 |
||||||
|
2 |
1A008090 - RACCORD More informationQuantity required : 1 |
||||||
|
3 |
1A028664 - MANCHON CORPS PAPIL. More informationQuantity required : 1 |
||||||
|
4 |
1A017660 - RIGHT INTAKE FITTING More informationQuantity required : 1 |
||||||
|
5 |
1A017659 - LEFT INTAKE FITTING More informationQuantity required : 1 |
||||||
|
6 |
1D001393 - INJECTEUR CARBURANT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/2/9/5/img/99295.jpg)
7 |
887015 - SENSORE TEMPERATURA/PRESSIONE ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/7/7/3/img/156773.jpg)
8 |
1A009167 - JOINT RACCORD More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/7/7/5/img/156775.jpg)
9 |
CM258302 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
10 |
830061 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
11 |
GU03013800 - ROS EL OND IX 6.4X12X0.5 More informationQuantity required : 6 |
||||||
|
12 |
GU98622322 - VIS More informationQuantity required : 6 |
||||||
|
13 |
2B002418 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/4/6/img/110646.jpg)
14 |
658837 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/8/img/71178.jpg)
15 |
AP8102401 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/2/4/img/70424.jpg)
16 |
872264 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/8/img/71408.jpg)
17 |
AP8120615 - JOINT More informationQuantity required : 1 |
||||||
|
18 |
887282 - BUSSOLA A T More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/6/img/71816.jpg)
19 |
AP8150045 - VIS More informationQuantity required : 4 |
