Vehicle Exploded View - MOTO-GUZZI V7 750 V7 Stone 850 E5+ ABS 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

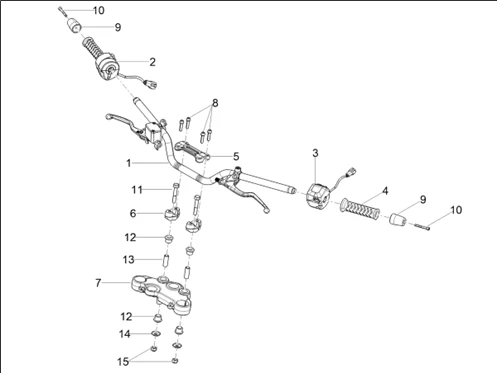

Guidon - commandes : 07.02 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1304/V7_Stone_850_E5_ABS_2025_(EMEA)_07.02.png)
1 |
2B014346 - GUIDON More informationQuantity required : 1 |
||||||
|
2 |
2B013921 - THROTTLE COMMAND More informationQuantity required : 1 |
||||||
|
3 |
2B012097 - LEFT COMMAND (DRL) More informationQuantity required : 1 |
||||||
|
4 |
2B011350 - POIGNéE GAUCHE More informationQuantity required : 1 |
||||||
|
5 |
2B007746 - UPPER HANDLEBARS CASE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/4/9/4/img/142494.jpg)
6 |
2B004080 - CAVALIER More informationQuantity required : 2 |
||||||
|
7 |
2B003250 - PLA.DIRECTION More informationQuantity required : 1 |
||||||
|
8 |
GU98692425 - VIS M8X25 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/9/9/1/img/174991.jpg)
9 |
2B008391 - WEIGHTS ANTIVIBRATION HANDLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/3/6/5/img/176365.jpg)
10 |
2B007195 - SCREW CYLINDER HEAD More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/9/3/img/99593.jpg)
11 |
887915 - (*) VITE M10X60 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/7/9/img/99579.jpg)
12 |
887901 - (*) GOMMINO More informationQuantity required : 4 |
||||||
|
13 |
887902 - (*) DISTANZIALE More informationQuantity required : 2 |
||||||
|
14 |
2B002875 - RONDELLE More informationQuantity required : 2 |
||||||
|
15 |
887904 - (*) DADO More informationQuantity required : 2 |
