Vehicle Exploded View - MOTO-GUZZI V7 750 V7 Stone 850 E5+ ABS 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

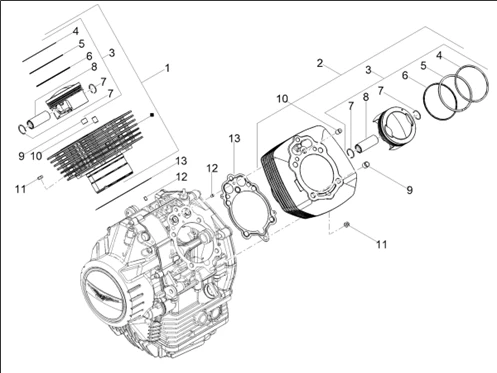

Moteur : 03.15 CYLINDRE - PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1304/V7_Stone_850_E5_ABS_2025_(EMEA)_03.15.png)
1 |
1A027213 - CYLINDRE AVEC PISTON CPL.D. More informationQuantity required : 1 |
||||||
|
2 |
1A027212 - CYLINDRE AVEC PISTON CPL. G. More informationQuantity required : 1 |
||||||
|
3 |
1A027084G - ASSY PISTON More informationQuantity required : 2 |
||||||
|
3 |
1A027084H - COMPLETE PISTON CAT H More informationQuantity required : 2 |
||||||
|
3 |
1A027084L - PISTON CPL. More informationQuantity required : 2 |
||||||
|
3 |
1A027084M - COMPLETE PISTON CAT M More informationQuantity required : 2 |
||||||
|
4 |
1A013936 - SEGMENT More informationQuantity required : 2 |
||||||
|
5 |
1A004954 - SEGMENT More informationQuantity required : 2 |
||||||
|
6 |
1A004955 - SEGMENT More informationQuantity required : 2 |
||||||
|
7 |
1A011548 - CIRCLIPS More informationQuantity required : 4 |
||||||
|
8 |
1A008933 - AXE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/2/img/68552.jpg)
9 |
JET FOR OIL PIPE ON CYLINDER HEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO-GUZZI MOTORBIKES+ MAXISCOOTER 400-500 CC -825597- More informationQuantity required : 2 |
||||||
|
10 |
GU19021360 - BAGUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
11 |
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/9/img/66669.jpg)
12 |
484993 - PIVOT DE CENTR. More informationQuantity required : 2 |
||||||
|
13 |
1A010855 - JOINT CYLINDRE More informationQuantity required : 2 |
