Eclatés de véhicule - GILERA EAGLET 50 Automatic 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

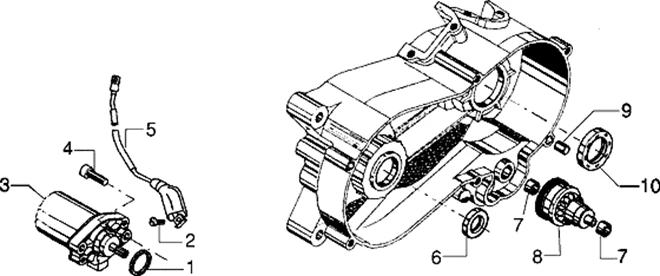

Moteur : T11 DEMARREUR ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/672/Eaglet_Automatic_1998-2005_T11.PNG)
Rechercher
1 |
CIRCLIPS |
||||||
|
2 |
VIS |
||||||
|
3 |
Démarreur |
||||||
|
4 |
VIS |
||||||
|
5 |
Faisc. de câbles |
||||||
|
6 |
CIRCLIPS |
||||||
|
7 |
MOYEU |
||||||
|
8 |
Ensamble renvoi |
||||||
|
9 |
Goujon |
||||||
|
10 |
CIRCLIPS |
