Eclatés de véhicule - GILERA EAGLET 50 Automatic 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

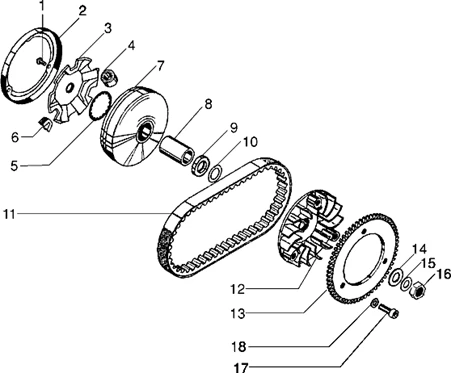

Moteur : T8 POULIE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/672/Eaglet_Automatic_1998-2005_T8.PNG)
1 |
VIS |
||||||
|
2 |
COUVERCLE |
||||||
|
3 |
Disque |
||||||
|
4 |
951833 - RULLINO Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
|
||||||
|
6 |
|
||||||
|
7 |
Demie-poulie |
||||||
|
8 |
ENTRETOISE |
||||||
|
9 |
ENTRETOISE |
||||||
|
10 |
RONDELLE |
||||||
|
11 |
COURROIE |
||||||
|
12 |
DEMI POULIE |
||||||
|
13 |
Couronne |
||||||
|
14 |
RONDELLE |
||||||
|
15 |
RONDELLE |
||||||
|
16 |
ECROU |
||||||
|
17 |
VIS |
||||||
|
18 |
RONDELLE |
