Eclatés de véhicule - GILERA EAGLET 50 Automatic 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

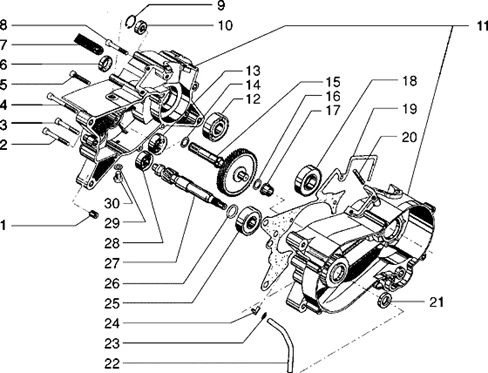

Moteur : T2 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/672/Eaglet_Automatic_1998-2005_T2.PNG)
1 |
Goupille |
||||||
|
2 |
VIS |
||||||
|
3 |
VIS |
||||||
|
4 |
VIS |
||||||
|
5 |
VIS |
||||||
|
6 |
CIRCLIPS |
||||||
|
7 |
Caoutchouc |
||||||
|
8 |
VIS |
||||||
|
9 |
CIRCLIPS |
||||||
|
10 |
951874 - ROULEMENT Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
CARTER |
||||||
|
12 |
ROULEMENT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/8/3/8/img/76838.jpg)
13 |
ROULEMENT DE VILEBREQUIN ORIGINE PIAGGIO 50 CIAO 1979> -241894- Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
RONDELLE |
||||||
|
15 |
Arbre secondaire |
||||||
|
16 |
RONDELLE |
||||||
|
17 |
MOYEU |
||||||
|
18 |
ROULEMENT |
||||||
|
19 |
JOINT |
||||||
|
20 |
GOUJON |
||||||
|
21 |
CIRCLIPS |
||||||
|
22 |
TUYAU RENIFLARD |
||||||
|
23 |
COLLIER |
||||||
|
24 |
RACCORD |
||||||
|
25 |
ROULEMENT |
||||||
|
26 |
RONDELLE |
||||||
|
27 |
ALBERO |
||||||
|
28 |
ROULEMENT |
||||||
|
29 |
JOINT |
||||||
|
30 |
VIS |
