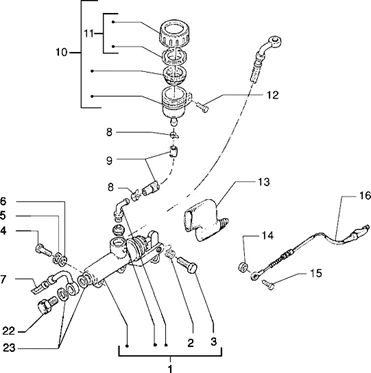

Moteur : T28 LEVIER FREIN-MAÎTRE-CYLINDER FREIN ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/672/Eaglet_Automatic_1998-2005_T28.PNG)
1 |
951547 - POMPA FRENO D: Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
RESSORT |
||||||
|
3 |
PERNO POMPA |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
4 |
VIS TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -031088 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
5 |
RONDELLE ELASTIQUE (6,4X11,8X1) ORIGINE PIAGGIO COMMUN A LA GAMME -016406 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
6 |
RONDELLE PLATE (6X12X1) ORIGINE PIAGGIO COMMUN A LA GAMME -003056- Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
TUBAZ.OLIO FRE |
||||||
|
8 |
COLLIER |
||||||
|
9 |
TUYAU |
||||||
|
10 |
RESERVOIR HUILE |
||||||
|
11 |
BOUCHON |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/8/img/66288.jpg)
12 |
VIS CRUCIFORME (6X14) ORIGINE PIAGGIO COMMUN A LA GAMME -296170 Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
PROTECTION |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/6/img/63796.jpg)
14 |
CLIPS/CICLIPS ORIGINE PIAGGIO COMMUN A LA GAMME -005964 Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
TRANSMISSION |
||||||
|
16 |
TRANSMISSION |
||||||
|
22 |
VIS |
||||||
|
23 |
JOINT |
