Eclatés de véhicule - GILERA EAGLET 50 Automatic 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

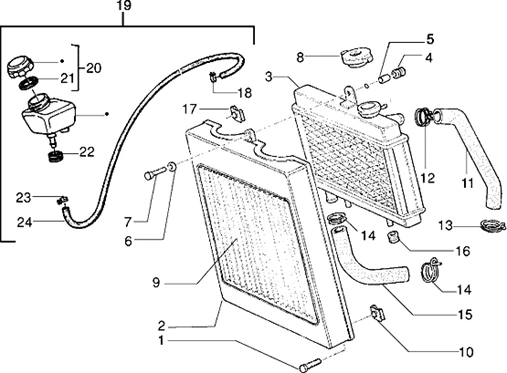

Moteur : T18 RADIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/672/Eaglet_Automatic_1998-2005_T18.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
1 |
VIS AUTOTARAUDEUSE (4,2X13) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -259349- Plus d'informationsQuantité requise : 2 |
||||||
2 |
COUVRE RADIATEUR BRU |
||||||
|
2 |
MASQUE 729 |
||||||
|
3 |
RADIATORE ALLU |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/3/2/img/65932.jpg)
4 |
CAOUTCHOUC/SILENBLOC (8MM) ORIGINE PIAGGIO COMMUN A LA GAMME -217163- Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
ENTRETOISE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
6 |
RONDELLE PLATE (6X12X1) ORIGINE PIAGGIO COMMUN A LA GAMME -003056- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/3/img/65643.jpg)
7 |
VIS TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -031092 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
BOUCHON |
||||||
|
9 |
GRILLE CACHE RADIAT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
10 |
ECROU TOLE (4.2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -CM017408- Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
DURITE RADIATEUR EAU |
||||||
|
12 |
COLLIER |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/9/img/72869.jpg)
13 |
COLLIER DURITE REFROIDISSEMENT (30.8 MM) ORIGINE PIAGGIO COMMUN A LA GAMME -CM001908- Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
COLLIER |
||||||
|
15 |
TUYAU |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/4/5/img/66345.jpg)
16 |
CAOUTCHOUC ANTI-VIBRATIONS ORIGINE PIAGGIO COMMUN A LA GAMME Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/0/7/8/img/77078.jpg)
17 |
CLIPS/PLAQUETTE ORIGINE PIAGGIO COMMUN A LA GAMME -259539 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/3/img/72893.jpg)
18 |
COLLIER POUR TUYAU DE 13MM ORIGINE PIAGGIO COMMUN A LA GAMME -CM002907- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/6/0/5/img/93605.jpg)
19 |
VASE EXPANSION/RESERVOIR LIQUIDE DE REFROIDISSEMENT ORIGINE PIAGGIO GILERA 50 GSM, HAK, ZULU, EAGLET 1998>2005 -941120 Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
BOUCHON |
||||||
|
21 |
JOINT |
||||||
|
22 |
PASSE CABLES |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/1/img/72891.jpg)
23 |
COLLIER DE SERRAGE DURITE (8X11) ORIGINE PIAGGIO COMMUN A LA GAMME -CM002904- Plus d'informationsQuantité requise : 1 |
||||||
|
24 |
TUYAU |
