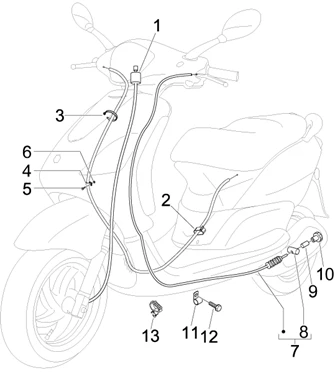

Instalation du freins - transmisisons : 05.03 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/63/Fly_125_4T_E3_2008-2011_05.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/2/9/img/67429.jpg)
1 |
CABLE/COMMANDE/TRANSMISSION DE COMPTEUR SCOOT ORIGINE PIAGGIO 50-125 FLY 2005>2011 -600315 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.jpg)
2 |
CLIPS RESSORT (D17) ORIGINE PIAGGIO COMMUN A LA GAMME -231590 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
3 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 4,8X270MM ORIGINE PIAGGIO COMMUN A LA GAMME -257134 Plus d'informationsQuantité requise : 2 |
||||||
4 |
649658 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
5 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
6 |
ECROU (M6) ECHAPPEMENT ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -288245 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/5/0/9/img/67509.jpg)
7 |
CABLE/COMMANDE/TRANSMISSION DE FREIN ARRIERE SCOOT ORIGINE PIAGGIO 50-125 FLY 2005>2011 -601736 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/1/img/66051.jpg)
8 |
DOUILLE/EMBOUT DE CABLE DE FREIN ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -266040 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/4/img/65794.jpg)
9 |
PIVOT TRANSMISSION FREIN ARRIERE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -179640 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/8/img/66088.jpg)
10 |
ECROU REGLAGE FREIN ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME -270310 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/7/2/img/67072.jpg)
11 |
PLAQUETTE DE FIXATION GANIE ORIGINE PIAGGIO COMMUN A LA GAMME -564645 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/7/img/68497.jpg)
12 |
VIS BTR (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -709674 Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
217280 - COLLIER Plus d'informationsQuantité requise : 1 |
