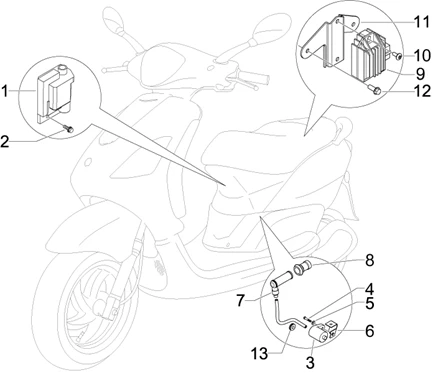

Installation électrique : 06.06 RÉGULATEURS DE TENSION - CENTRALES ELECTRONIQUES - BOBINE H.T.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/63/Fly_125_4T_E3_2008-2011_06.06.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/9/9/img/72999.jpg)
1 |
BOITIER CDI MAXISCOOTER ORIGINE PIAGGIO 125 FLY, LIBERTY, VESPA LX 2007>2012/APRILIA 125 MOJITO 2008 -CM078307 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
2 |
VIS BRIDE TH (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -018639 Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/6/img/67186.jpg)
3 |
BOBINE ALLUMAGE MAXISCOOTER ORIGINE PIAGGIO 125 MP3, FLY, X8, X9-EVO, ZIP, X-EVO/GILERA 125 NEXUS, RUNNER 4T/APRILIA 125 SPORT-CITY-ONE -58083R Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
4 |
VIS CRUCIFORME (5X21) ORIGINE PIAGGIO COMMUN A LA GAMME -015856 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/2/img/65342.jpg)
5 |
RONDELLE A DENTS (5,3X10) ORIGINE PIAGGIO COMMUN A LA GAMME -012528 Plus d'informationsQuantité requise : 1 |
|||||||||
6 |
583895 - SUPPORT Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/6/9/img/70969.jpg)
7 |
ANTIPARASITE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MAXISCOOTER -969348 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/8/img/66508.jpg)
8 |
CAPUCHON ISOLANT ANTI PARASITE ORIGINE PIAGGIO COMMUN A LA GAMME -436919 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/7/img/67187.jpg)
9 |
REGULATEUR MAXISCOOTER ORIGINE PIAGGIO 125 BEVERLY, FLY, LIBERTY, MP3, X7, X8, X9, X-EVO, VESPA GTS, PRIMAVERA, VESPA SPRINT, VESPA LX/APRILIA 125 ATLANTIC, MOJITO, RS4/GILERA 125 NEXUS -58090R5 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
10 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 2 |
|||||||||
|
10 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 2 |
|||||||||
|
11 |
582030 - SUPPORT Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
12 |
VIS BRIDE TH (6X10) ORIGINE PIAGGIO COMMUN A LA GAMME -969296 Plus d'informationsQuantité requise : 2 |
|||||||||
|
13 |
573052 - PASSE CABLE Plus d'informationsQuantité requise : 1 |
|||||||||
