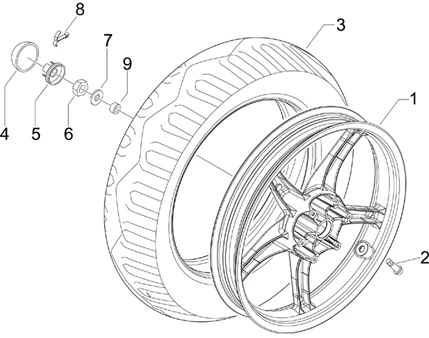

Suspensions - roues : 04.12 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/63/Fly_125_4T_E3_2008-2011_04.12.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/4/9/img/67449.jpg)
1 |
JANTE/ROUE ARRIERE ORIGINE PIAGGIO 50-125 FLY 2006> -600632- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
2 |
VALVE TUBELESS ORIGINE PIAGGIO COMMUN A LA GAMME -270991 Plus d'informationsQuantité requise : 1 |
||||||
3 |
598277 - PNEU 120/70-12 SAVA MC20 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/0/1/5/img/76015.jpg)
4 |
BOUCHON DE ROUE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME SCOOTER ET MAXISCOOTER CHROME -1C000523 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.jpg)
5 |
CAGE FIXATION ECROU DE ROUE ARRIERE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME SCOOTER ET MAXISCOOTER -1C004746 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
CAGE FIXATION ECROU DE ROUE ARRIERE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME SCOOTER ET MAXISCOOTER -1C004746 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
6 |
ECROU (M16) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -563728 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/2/img/66122.jpg)
7 |
RONDELLE (16X34,8X2,2) ROUE ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME -273099 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
8 |
GOUPILLE SECURITE ECROU DE ROUE ARRIERE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME SCOOTER ET MAXISCOOTER -012789 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/7/4/img/67474.jpg)
9 |
ENTRETOISE ORIGINE PIAGGIO COMMUN A LA GAMME -601205 Plus d'informationsQuantité requise : 1 |
