Eclatés de véhicule - PIAGGIO VU PORTER ELECTRIQUE 0 PORTER NPE 3070
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

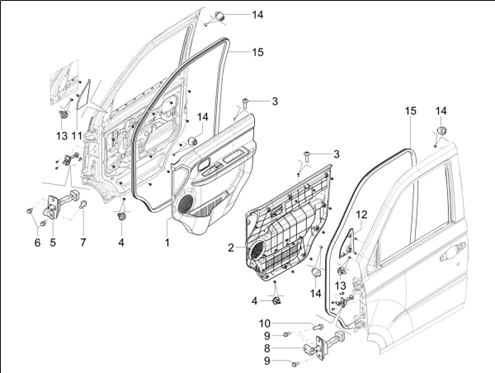

04_châssis - carrosseries : 04.13 13_FRONT DOOR COMPONENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1319/PORTER_NPE_3070_04.13.png)
1 |
WET610162100A0 RH FRONT DOOR INNER PANEL ASSY Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
WET610160100A0 LH FRONT DOOR INNER PANEL ASSY Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
WQ2140620F62 CROSS RECESSED PAN HEAD SCREW Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
W1K18063200300 PLASTIC CLIP Plus d'informationsQuantité requise : 26 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/2/3/img/173423.jpg)
5 |
BUTEE/TIRANT OUVERTURE DE PORTIERE AVANT ORIGINE PIAGGIO PORTER NP6 2021> -WC3610120001A0 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
WQ1800616F62 VIS A TETE HEXAGONALE BRIDEE Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
WQ1800820F62 VIS A TETE HEXAGONALE BRIDEE Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
BUTEE/TIRANT OUVERTURE DE PORTIERE AVANT ORIGINE PIAGGIO PORTER NP6 2021> -WC3610120001A0 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
WQ1800616F62 VIS A TETE HEXAGONALE BRIDEE Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
WQ1800820F62 VIS A TETE HEXAGONALE BRIDEE Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
WL0610163702A0 RH FRONT DOOR INTERIOR S SQUARE ASSY Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
WL0610161500A0 LH FRONT DOOR INTERIOR S SQUARE ASSY Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/2/8/img/173428.jpg)
13 |
RIVET A PRESSION ORIGINE PIAGGIO PORTER NP6 -W1B14861200034- Plus d'informationsQuantité requise : 6 |
||||||
|
14 |
WET610180400A0 - TAMPON BLOCAGE PORTIERE Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/3/0/img/173430.jpg)
15 |
JOINT DE COMPARTIMENT DE PORTIERE AVANT ORIGINE PIAGGIO PORTER NP6 2021> -WC4610130009A0 Plus d'informationsQuantité requise : 2 |
