Eclatés de véhicule - PIAGGIO VU PORTER ELECTRIQUE 0 PORTER NPE 3070
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

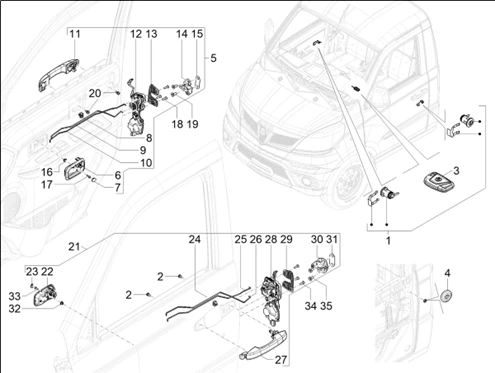

04_châssis - carrosseries : 04.14 14_LOCKS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1319/PORTER_NPE_3070_04.14.png)
1 |
JOINT DE COMPARTIMENT DE PORTIERE AVANT ORIGINE PIAGGIO PORTER NP6 2021> -WC4610130009A0- Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
WQ236B0614F62 CROSS CAP SCREW WITH PLANE AND ELASTIC Plus d'informationsQuantité requise : 2 |
||||||
|
3 |
WQ236B0614F62 CROSS CAP SCREW WITH PLANE AND ELASTIC Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
WC3826010003A0 BOUCHON Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
GROUPE FERMETURE DE PORTE DROIT COMPLET ORIGINE PIAGGIO PORTER NP6 2022> -WET610151800A0 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
WET610152300A0 - RH INTERNAL HANDLE Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
WET61000000020 - RH HANDLE SCREW CAP Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
WC3610150028A0 AGRAFE Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
RIGHT FRONT DOOR BUCKLE PULLING ROD |
||||||
|
10 |
RIGHT FRONT DOOR SWITCH PULLING ROD |
||||||
|
11 |
POIGNEE DE PORTE DROITE ORIGINE PIAGGIO PORTER NP6 2021> -WET610152400A0 Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
WET610151900A0 - RIGHT FRONT DOOR LOCK ASSY Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
WET610180500A0 - RH DOOR SPACER Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
WET610151600A0 - STRIKER, DOOR LOCK Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
WC3640150017A0 LATCH GASKET Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
W1J17261500021 CHEVILLE A EXPANSION Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
WQ2714816F61 SELF TAPPING SCREW W CROSS SLOT Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
VIS BTR TETE FRAISEE (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -830129 Plus d'informationsQuantité requise : 3 |
||||||
|
19 |
|
||||||
|
20 |
WQ236B0614F62 CROSS CAP SCREW WITH PLANE AND ELASTIC Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/9/6/8/5/img/199685.jpg)
21 |
GROUPE FERMETURE DE PORTE GAUCHE COMPLET ORIGINE PIAGGIO PORTER NP6 2022> -WET610150100A0 Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
WET610150600A0 LH INTERNAL HANDLE Plus d'informationsQuantité requise : 1 |
||||||
|
23 |
WET610155200A0 - LH HANDLE SCREW CAP Plus d'informationsQuantité requise : 1 |
||||||
|
24 |
WC3610150028A0 AGRAFE Plus d'informationsQuantité requise : 1 |
||||||
|
25 |
LEFT FRONT DOOR SWITCH PULLING ROD |
||||||
|
26 |
LEFT FRONT DOOR BUCKLE PULLING ROD |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/3/7/9/2/img/213792.jpg)
27 |
POIGNEE DE PORTE GAUCHE ORIGINE PIAGGIO PORTER NP6 2021> -WET610150700A0 Plus d'informationsQuantité requise : 1 |
||||||
|
28 |
WET610150200A0 - LEFT FRONT DOOR LOCK ASSY Plus d'informationsQuantité requise : 1 |
||||||
|
29 |
WET610180401A0 - LH DOOR SPACER Plus d'informationsQuantité requise : 1 |
||||||
|
30 |
WET610151600A0 - STRIKER, DOOR LOCK Plus d'informationsQuantité requise : 1 |
||||||
|
31 |
WC3640150017A0 LATCH GASKET Plus d'informationsQuantité requise : 1 |
||||||
|
32 |
W1J17261500021 CHEVILLE A EXPANSION Plus d'informationsQuantité requise : 1 |
||||||
|
33 |
WQ2714816F61 SELF TAPPING SCREW W CROSS SLOT Plus d'informationsQuantité requise : 1 |
||||||
|
34 |
VIS BTR TETE FRAISEE (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -830129 Plus d'informationsQuantité requise : 3 |
||||||
|
35 |
|
