Eclatés de véhicule - PIAGGIO VU PORTER ELECTRIQUE 0 PORTER NPE 3070
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

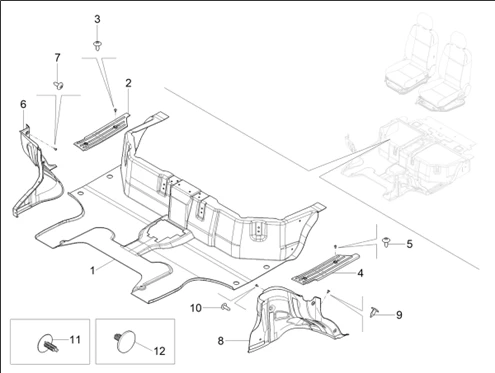

08_composants internes de la cabine : 08.01 01_REVÊTEMENTS INTÉRIEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1319/PORTER_NPE_3070_08.01.png)
1 |
WET512010501A0 - TAPIS Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
WC3512020201A0 RIGHT FRONT THRESHOLD STRIP Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
WQ220B5516F62 SELF TAPPING SCREW Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
WC3512020101A0 LEFT FRONT THRESHOLD STRIP Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
WQ220B5516F62 SELF TAPPING SCREW Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
WET512021900A0 F.R. WHEEL COVER TRIM COVER Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
WQ2734816F62 SELF TAPPING SCREW Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
WET512021800A0 F.L. WHEEL COVER TRIM COVER Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/8/3/img/173483.jpg)
9 |
RIVET A PRESSION ORIGINE PIAGGIO PORTER NP6 -WC3531010002A0 Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
WQ2734816F62 SELF TAPPING SCREW Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
WQ2734816F62 SELF TAPPING SCREW Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
WK1512020031A0 BLANKET SNAP FIT Plus d'informationsQuantité requise : 6 |
