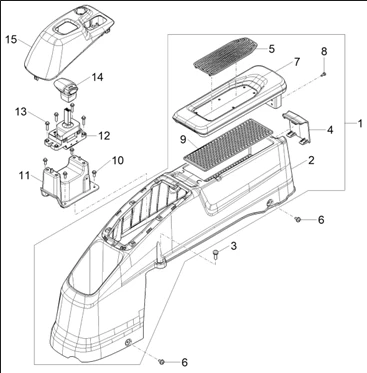

08_composants internes de la cabine : 08.02 02_TUNNEL CENTRAL - LEVIER DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1319/PORTER_NPE_3070_08.02.png)
1 |
MIDDLE CONSOLE WITH ARMREST |
||||||
|
2 |
WET535123100A0 - MIDDLE CONSOLE BODY Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
WQ236B0620F62 CROSS SLOT CAP SCREW W PLANE AND ELAST Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
STORAGE BOX COVER HINGE |
||||||
|
5 |
WET53500000007 - ARMREST MAT Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
WQ220B5513F62 CROSS SLOTTED CAP SCREW WITH WASHER Plus d'informationsQuantité requise : 4 |
||||||
|
7 |
ARMREST COMPLETE |
||||||
|
8 |
WQ2714813F38 - VIS AUTOTARAUDEUSE Plus d'informationsQuantité requise : 6 |
||||||
|
9 |
WET535122000A0 - STORAGE BOX RUBBER PAD Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
WQ1840616F61 VIS A TETE HEXAGONALE BRIDEE Plus d'informationsQuantité requise : 4 |
||||||
|
11 |
WQ1840616F61 VIS A TETE HEXAGONALE BRIDEE Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
WET535126300A0 - SHIFTER SUPPORT BRACKET Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
WQ1840625F62 VIS A TETE HEXAGONALE BRIDEE Plus d'informationsQuantité requise : 4 |
||||||
|
14 |
WQ1840625F62 VIS A TETE HEXAGONALE BRIDEE Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
WET173020100A0 - KNOB ASSY, GEAR SHIFT (PRND) Plus d'informationsQuantité requise : 1 |
