Eclatés de véhicule - PIAGGIO VU PORTER ELECTRIQUE 0 PORTER NPE 3070
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

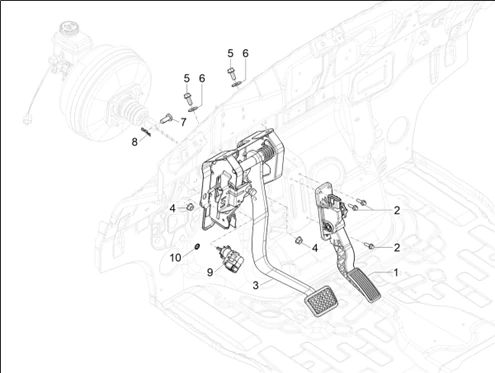

08_composants internes de la cabine : 08.07 07_GROUPE PEDALES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1319/PORTER_NPE_3070_08.07.png)
1 |
WET117030100A0 PEDALE GAZ Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
WQ1800620F61 VIS A TETE HEXAGONALE BRIDEE Plus d'informationsQuantité requise : 3 |
||||||
|
3 |
WQ1800620F61 VIS A TETE HEXAGONALE BRIDEE Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
WQ32008F61 ÉROU HEXAGONAL BRIDE Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
WQ1840820F61 HEXAGON FLANGE BOLT Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
WQ402B08F61 RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
WQ510B102621F38 PIVOT Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
WQ50110F61 GOUPILLE Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
Contacteur de stop |
||||||
|
10 |
WQ50110F61 GOUPILLE Plus d'informationsQuantité requise : 1 |
