Eclatés de véhicule - APRILIA SXR 50 50 4T 3V E5 HE NEW COMFORT 2021-2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

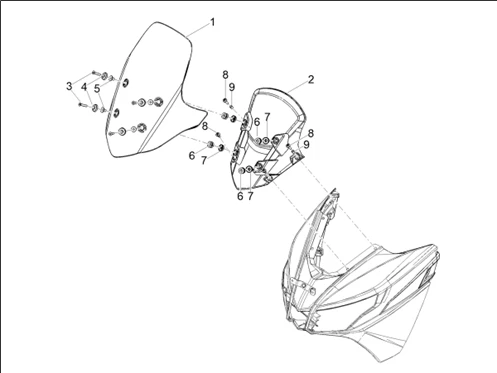

Carrosserie : 02.05 COUPOLE / PARE BRISE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1247/SXR_50_4T_3V_E5_HE_NEW_COMFORT_2021-2023_(EMEA)_02.05.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/0/9/img/178509.jpg)
1 |
PARE BRISE ORIGINE PIAGGIO 50 APRILIA SXR 2021> (MONTE ORIGINE) -1B007724 Plus d'informationsQuantité requise : 1 |
||||||
2 |
1B010558 - SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/1/0/img/178510.jpg)
2 |
SUPPORT PARE BRISE ORIGINE PIAGGIO 50 SXR APRILIA 2021> -1B007719 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/1/5/2/img/177152.jpg)
3 |
VIS TORX (6X30) ORIGINE PIAGGIO COMMUN A LA GAMME -1B006381 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/5/6/4/img/91564.jpg)
4 |
BAGUE PARE-BRISE ORIGINE PIAGGIO 125-250-300-350-400-500 MP3 2008>2014 -674070 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/5/6/3/img/91563.jpg)
5 |
ENTRETOISE DE PARE BRISE ORIGINE PIAGGIO 125-250-300-350-400-500-530 MP3 -674068 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/4/img/67134.jpg)
6 |
PASSE-CABLE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -576565 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/6/4/6/img/91646.jpg)
7 |
ENTRETOISE DE PARE-BRISE ORIGINE PIAGGIO 125-300-400-500 MP3/50 SXR APRILIA 2021> -674352 Plus d'informationsQuantité requise : 4 |
||||||
|
8 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/6/4/3/img/8864_3.JPG)
9 |
ENTRETOISE (6,2X8,5X8,8) ORIGINE APRILIA SXR 50 2021> -655131- Plus d'informationsQuantité requise : 1 |
