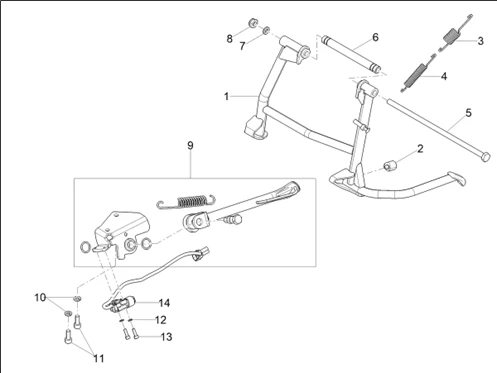

Châssis/coque : 01.03 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1247/SXR_50_4T_3V_E5_HE_NEW_COMFORT_2021-2023_(EMEA)_01.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/0/3/img/178503.jpg)
1 |
BEQUILLE CENTRALE ORIGINE PIAGGIO 50 SXR APRILIA 2021> -1C005074 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/1/8/7/img/164187.jpg)
2 |
TAMPON CAOUTCHOUC DE BEQUILLE ORIGINE PIAGGIO 50 SXR APRILIA 2021> -666484- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/2/5/3/img/90253.jpg)
3 |
RESSORT DE BEQUILLE CENTRALE (GROS) ORIGINE PIAGGIO 400 BEVERLY, MP3 2020>/50 SXR APRILIA 2021> -667567- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/2/5/2/img/90252.jpg)
4 |
RESSORT DE BEQUILLE CENTRALE (PETIT) ORIGINE PIAGGIO 400 BEVERLY, MP3 2020>/50 SXR APRILIA 2021> -667566- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/1/0/img/146210.jpg)
5 |
AXE/VIS BRAS OSCILLANT ORIGINE PIAGGIO 50 LIBERTY 2015>/ 50 SXR APRILIA 2021> -597043- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/1/8/6/img/164186.jpg)
6 |
ENTRETOISE DE BEQUILLE ORIGINE PIAGGIO 50 SXR APRILIA 2021> -668585- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/7/img/66127.jpg)
7 |
JOINT AXE DE BEQUILLE ORIGINE PIAGGIO COMMUN A LA GAMME -273754- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
8 |
ECROU AUTOBLOQUANT/NYLSTOP (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -002440- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/0/4/img/178504.jpg)
9 |
BEQUILLE LATERALE ORIGINE PIAGGIO APRILIA 50 SXR 2021> (MONTE ORIGINE) -1C005388- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
10 |
RONDELLE (8,15X13,75X4,5) ORIGINE PIAGGIO COMMUN A LA GAMME -016408- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/6/0/img/82460.jpg)
11 |
VIS BTR (8X20) ORIGINE PIAGGIO COMMUN A LA GAMME -599009- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
12 |
RONDELLE GROWER (5,1X8,5X1,5) ORIGINE PIAGGIO COMMUN A LA GAMME -016405 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/7/img/66257.jpg)
13 |
VIS BTR (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -2928896 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/4/0/2/img/86402.jpg)
14 |
CONTACTEUR/BOUTON DE BEQUILLE ORIGINE PIAGGIO COMMUN A LA GAMME -642559- Plus d'informationsQuantité requise : 1 |
