Eclatés de véhicule - APRILIA SXR 50 50 4T 3V E5 HE NEW COMFORT 2021-2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

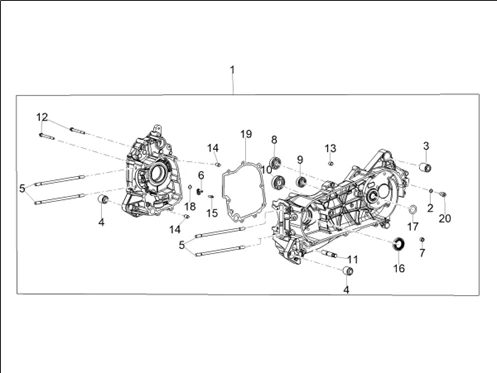

Moteur : 03.03 CARTERS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1247/SXR_50_4T_3V_E5_HE_NEW_COMFORT_2021-2023_(EMEA)_03.03.png)
1 |
SP1A023573 - CARTER COMPLET Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/1/9/6/6/img/181966.jpg)
1 |
CARTER MOTEUR (UNQUEMMENT AVEC SP1A016488) ORIGINE APRILIA 50 SXR 2021> -SP1A016496 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
2 |
JOINT DE VIDANGE CARTER DE TRANSMISSION (8,2X12X1) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -485703- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/0/1/img/149101.jpg)
3 |
SILENTBLOC (10X24X33) ORIGINE PIAGGIO COMMUN A LA GAMME -666991- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/4/img/66704.jpg)
4 |
SILENTBLOC DE CARTER MOTEUR ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -486081 Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
1A018755 - STUD SCREW Plus d'informationsQuantité requise : 4 |
||||||
|
6 |
GICLEUR LUBRIFICATION ORIGINE PIAGGIO 50 SXR APRILIA 2021> -1A015053- Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
B017446 - JOINT Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
ROULEMENT (17X40X12) ORIGINE PIAGGIO COMMUN A LA GAMME -B016955 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
ROULEMENT (15X35X11) ORIGINE PIAGGIO COMMUN A LA GAMME -B016957 Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
ROULEMENT (20X47X14) ORIGINE PIAGGIO COMMUN A LA GAMME -B016954 Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
668686 - PIVOT Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
1A003068 - VIS Plus d'informationsQuantité requise : 9 |
||||||
|
13 |
B015591 GOUJON Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
B015592 CLAVETTE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/9/1/img/109891.jpg)
15 |
VIS BTR (5X14) ORIGINE PIAGGIO COMMUN A LA GAMME -B018718 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/6/8/img/164068.jpg)
16 |
JOINT SPI (25X40X7) ORIGINE PIAGGIO COMMUN A LA GAMME -B018139- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/6/9/img/164069.jpg)
17 |
JOINT SPI (20X32X7) ORIGINE PIAGGIO COMMUN A LA GAMME -B019107 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/6/0/5/7/img/166057.jpg)
18 |
JOINT TORIQUE CARTER ORIGINE APRILIA 50 SXR 2021> -1A001256 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/7/0/img/164070.jpg)
19 |
JOINT DEMI CARTER ORIGINE APRILIA 50 SXR 2021> -1A001278- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
20 |
VIS BTR (8X12) ORIGINE PIAGGIO COMMUN A LA GAMME -269755 Plus d'informationsQuantité requise : 2 |
