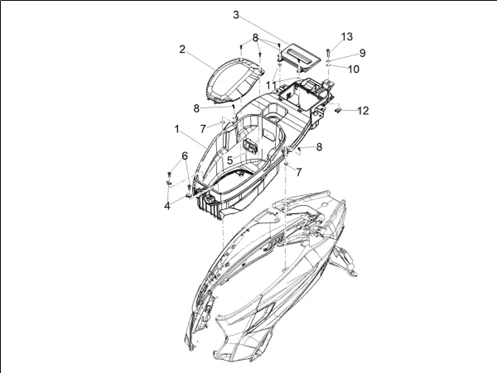

Carrosserie : 02.13 LOGEMENT SOUS-SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1247/SXR_50_4T_3V_E5_HE_NEW_COMFORT_2021-2023_(EMEA)_02.13.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/4/8/img/178548.jpg)
1 |
COFFRE A CASQUE ORIGINE PIAGGIO 50 SXR APRILIA 2021> -1B007720 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/4/9/img/178549.jpg)
2 |
COUVERCLE COFFRE CASQUE ORIGINE PIAGGIO 50 SXR APRILIA 2021> -1B007721 Plus d'informationsQuantité requise : 1 |
||||||
3 |
COUVERCLE BATTERIE ORIGINE PIAGGIO 50 SXR APRILIA 2021> -1B008490 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485- Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
1B007449 - COURTESY LIGHT HOUSING Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
6 |
VIS CARENAGE (M6) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -575249 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
7 |
ECROU TOLE (4,2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -CM017410 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
8 |
VIS DE CARENAGE (3X18) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -258249 Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
9 |
RONDELLE (8,15X13,75X4,5) ORIGINE PIAGGIO COMMUN A LA GAMME -016408- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
10 |
RONDELLE PLATE (8,4X15X1,5) ORIGINE PIAGGIO COMMUN A LA GAMME -003058- Plus d'informationsQuantité requise : 3 |
||||||
|
11 |
1B008799 DOUILLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/4/img/67114.jpg)
12 |
ECROU TOLE (M8) ORIGINE PIAGGIO COMMUN A LA GAMME -575268- Plus d'informationsQuantité requise : 3 |
||||||
|
13 |
VIS BTR TETE BOMBEE (8X35) ORIGINE PIAGGIO COMMUN A LA GAMME -970273 Plus d'informationsQuantité requise : 1 |
