Eclatés de véhicule - APRILIA SXR 50 50 4T 3V E5 HE NEW COMFORT 2021-2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

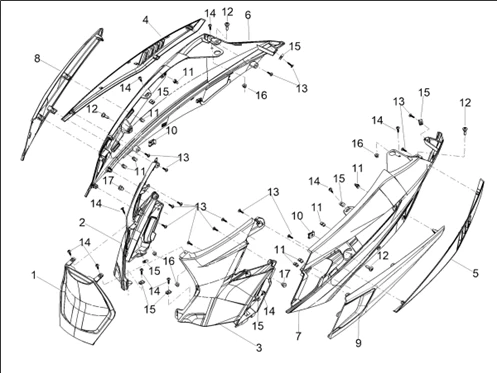

Carrosserie : 02.14 CARROSSERIE POSTERIEURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1247/SXR_50_4T_3V_E5_HE_NEW_COMFORT_2021-2023_(EMEA)_02.14.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/5/2/img/178552.jpg)
1 |
FERMETURE CENTRALE ORIGINE PIAGGIO 50 SXR APRILIA 2021> -1B007717 Plus d'informationsQuantité requise : 1 |
||||||
2 |
CACHE LATERAL DROIT ORIGINE PIAGGIO 50 SXR APRILIA MY 2023>MATT BLACK-1B010587 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/5/3/img/178553.jpg)
2 |
CACHE LATERAL DROIT ORIGINE PIAGGIO 50 SXR APRILIA 2021> NOIR -1B007715- Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
CACHE LATERAL GAUCHE ORIGINE PIAGGIO 50 SXR APRILIA MY 2023> MATT BLACK-1B010586 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/5/4/img/178554.jpg)
3 |
CACHE LATERAL GAUCHE ORIGINE PIAGGIO 50 SXR APRILIA 2021> NOIR -1B007711- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/5/5/img/178555.jpg)
4 |
CACHE/FLANC LATERAL INFERIEUR DROIT ORIGINE PIAGGIO 50 SXR APRILIA 2021> NOIR -1B007716 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/5/6/img/178556.jpg)
5 |
CACHE/FLANC LATERAL INFERIEUR GAUCHE ORIGINE PIAGGIO 50 SXR APRILIA 2021> NOIR -1B007712 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
1B010795 - FLANC DROIT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/1/9/6/1/img/181961.jpg)
6 |
AILE/FLANC ARRIERE DROIT ORIGINE PIAGGIO 50 SXR APRILIA 2021> GRIS -SP1B007714HL Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/5/7/img/178557.jpg)
6 |
AILE/FLANC ARRIERE DROIT ORIGINE PIAGGIO 50 SXR APRILIA 2021> ROUGE -SP1B007714R7 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/5/8/img/178558.jpg)
6 |
AILE/FLANC ARRIERE DROIT ORIGINE PIAGGIO 50 SXR APRILIA 2021> BLANC -SP1B007714BR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/5/9/img/178559.jpg)
6 |
AILE/FLANC ARRIERE DROIT ORIGINE PIAGGIO 50 SXR APRILIA 2021> NOIR -SP1B007714NL Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
1B010794 - AILE G Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/6/0/img/178560.jpg)
7 |
AILE/FLANC ARRIERE GAUCHE ORIGINE PIAGGIO 50 SXR APRILIA 2021> ROUGE -SP1B007708R7 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/1/9/6/2/img/181962.jpg)
7 |
AILE/FLANC ARRIERE GAUCHE ORIGINE PIAGGIO 50 SXR APRILIA 2021> GRIS -SP1B007708HL Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/6/1/img/178561.jpg)
7 |
AILE/FLANC ARRIERE GAUCHE ORIGINE APRILIA SXR 50> BLANC -SP1B007708BR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/6/2/img/178562.jpg)
7 |
AILE/FLANC ARRIERE GAUCHE ORIGINE PIAGGIO 50 SXR APRILIA 2021> NOIR -SP1B007708NL- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/6/7/6/0/img/186760.jpg)
8 |
CACHE FLANC DROIT ORIGINE PIAGGIO 50 SXR APRILIA 2021> -SP1B008605 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/0/6/7/img/187067.jpg)
9 |
CACHE FLANC GAUCHE ORIGINE PIAGGIO 50 SXR APRILIA 2021> -SP1B008604- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/4/img/73404.jpg)
11 |
AGRAPHE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -D9004468091 Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
12 |
VIS CARENAGE (M6) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -575249 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
13 |
VIS AUTOTARAUDEUSE (3.85X16) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -270793 Plus d'informationsQuantité requise : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
14 |
VIS DE CARENAGE (3X18) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -258249 Plus d'informationsQuantité requise : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
15 |
ECROU TOLE (4,2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -CM017410 Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
16 |
AGRAPHE/CHEVILLE A EXPENSION ORIGINE PIAGGIO COMMUN A LA GAMME -157716 Plus d'informationsQuantité requise : 4 |
||||||
|
17 |
623504 - SILENTBLOC Plus d'informationsQuantité requise : 2 |
