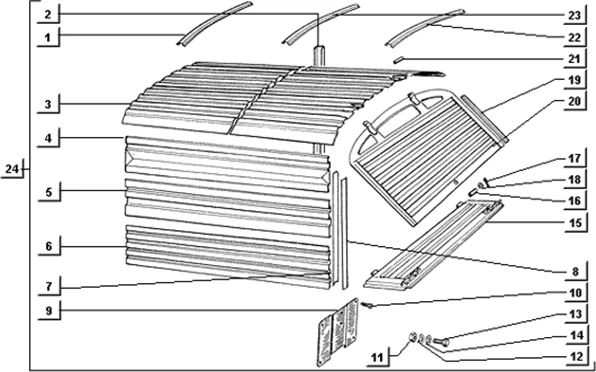

Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel 422CC 1997-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)
Châssis : T125 FOURGON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/330/Ape_TM_703_Diesel_422CC_1997-2004_T125_20251008100826.PNG)
1 |
162549 - RESSORT More informationQuantity required : 2 |
||||||
|
1 |
RESSORT |
||||||
|
1 |
RENFORT CENTRAL |
||||||
|
2 |
162548 - CLIQUET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
2 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408 More informationQuantity required : 8 |
||||||
|
2 |
ETAI CENTRAL |
||||||
|
3 |
017718 - GOUPILLE More informationQuantity required : 2 |
||||||
|
3 |
031117 - BOULON S03111700 More informationQuantity required : 8 |
||||||
|
3 |
2526625 - PADIGLIONE CON More informationQuantity required : 2 |
||||||
|
4 |
|
||||||
|
4 |
162546 - RESSORT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
4 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108 More informationQuantity required : 6 |
||||||
|
5 |
|
||||||
|
5 |
230648 - BOUTON More informationQuantity required : 4 |
||||||
|
5 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408 More informationQuantity required : 6 |
||||||
|
6 |
|
||||||
|
6 |
INSONORIZZAZIO |
||||||
|
6 |
031117 - BOULON S03111700 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
7 |
SCREW - -008432 More informationQuantity required : 4 |
||||||
|
7 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108 More informationQuantity required : 1 |
||||||
|
7 |
2143075 - ETAI AR INT G More informationQuantity required : 1 |
||||||
|
7 |
2464035 - ETAI AR INT D More informationQuantity required : 1 |
||||||
|
8 |
212558 - COUVERCLE More informationQuantity required : 2 |
||||||
|
8 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408 More informationQuantity required : 1 |
||||||
|
8 |
CORNIERE AR EXT G |
||||||
|
8 |
2143065 - CORNIERE AR EXT D More informationQuantity required : 1 |
||||||
|
9 |
ABATTANT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
9 |
031119 - BOULON More informationQuantity required : 1 |
||||||
|
9 |
PLAQUE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/9/img/63849.jpg)
10 |
008265 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/4/img/63764.jpg)
10 |
002383 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
11 |
020105 - ECROU S02010500 More informationQuantity required : 4 |
||||||
|
11 |
127046 - TAMPON More informationQuantity required : 2 |
||||||
|
12 |
003055 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/8/img/63798.jpg)
12 |
005967 - CLIPS S00596700 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/3/8/img/65338.jpg)
13 |
010047 - VIS S01004700 More informationQuantity required : 4 |
||||||
|
13 |
TAIL GATE ACTUATOR "PIAGGIO GENUINE PARTS" APE -56606R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
14 |
016405 - RONDELLE S01640500 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
14 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
||||||
|
15 |
2143147 - ABATTANT More informationQuantity required : 1 |
||||||
|
16 |
017702 - GOUPILLE ELASTIQUE More informationQuantity required : 2 |
||||||
|
17 |
B005668 - GOUPILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/8/img/63778.jpg)
18 |
WASHER "PIAGGIO GENUINE PART" 125 VESPA PX, APE -003057 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/3/7/5/img/116375.jpg)
19 |
CM255506 - JOINT More informationQuantity required : 1 |
||||||
|
20 |
2143215 - ABATTANT More informationQuantity required : 1 |
||||||
|
21 |
017701 - FICHE S01770100 More informationQuantity required : 2 |
||||||
|
22 |
PROFIL |
||||||
|
23 |
1291595 - RENFORT More informationQuantity required : 2 |
||||||
|
24 |
2526505 - FURGONE COMPL. More informationQuantity required : 1 |
