Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel 422CC 1997-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

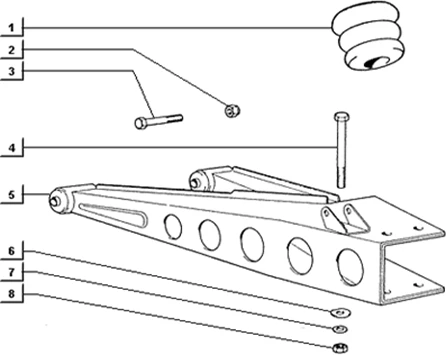

Roues : T84 TRIANGLE SUSPENSION AR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/330/Ape_TM_703_Diesel_422CC_1997-2004_T84_20251008100715.PNG)
1 |
177311 - COUPLE TAMPONS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
2 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440 More informationQuantity required : 4 |
||||||
|
3 |
018622 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/2/5/img/65625.jpg)
4 |
SCREW - FOR CENTRAL STAND 10X130 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -030115 More informationQuantity required : 6 |
||||||
|
5 |
2671725 - TRIANGLE G More informationQuantity required : 1 |
||||||
|
5 |
2671735 - TRIANGLE D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/0/img/65370.jpg)
6 |
013962 - RONDELLE S01396200 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/9/img/65419.jpg)
7 |
016410 - ANNEAU More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/7/img/65377.jpg)
8 |
015252 - ECROU S01525200 More informationQuantity required : 1 |
