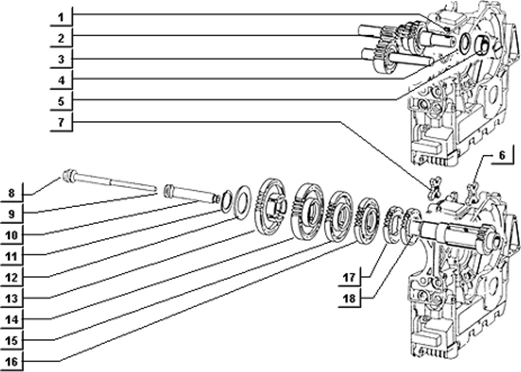

Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel 422CC 1997-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)
Moteur : T36 PIGNONS BOITE DE VITESSES VERSION VITESSES VOLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/330/Ape_TM_703_Diesel_422CC_1997-2004_T36_20251008100213.PNG)
1 |
018216 - CLAVETTE More informationQuantity required : 1 |
||||||
|
2 |
ENGRENAGE |
||||||
|
3 |
2488165 - ALB.RETROM.PER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/6/img/63826.jpg)
4 |
006652 - CIRCLIP More informationQuantity required : 1 |
||||||
|
5 |
287111 - ROULEMENT More informationQuantity required : 1 |
||||||
|
6 |
|
||||||
|
7 |
|
||||||
|
8 |
2230975 - STELO More informationQuantity required : 1 |
||||||
|
9 |
4314695 - STELO C.CROC.P More informationQuantity required : 1 |
||||||
|
10 |
CIRCLIPS |
||||||
|
11 |
RONDELLE |
||||||
|
11 |
RONDELLE |
||||||
|
11 |
244922 - RONDELLE More informationQuantity required : 1 |
||||||
|
11 |
244923 - RONDELLE More informationQuantity required : 1 |
||||||
|
11 |
RONDELLE |
||||||
|
11 |
244925 - RONDELLE More informationQuantity required : 1 |
||||||
|
11 |
244926 - RONDELLE More informationQuantity required : 1 |
||||||
|
11 |
244927 - RONDELLE More informationQuantity required : 1 |
||||||
|
12 |
2488175 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
13 |
ENGRENAGE |
||||||
|
14 |
ENGRENAGE |
||||||
|
15 |
2230945 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
16 |
ENGRENAGE |
||||||
|
17 |
Engrenage 5eme vitesse |
||||||
|
18 |
2870345 - ALB.INGR.CAMBI More informationQuantity required : 1 |
