Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel 422CC 1997-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

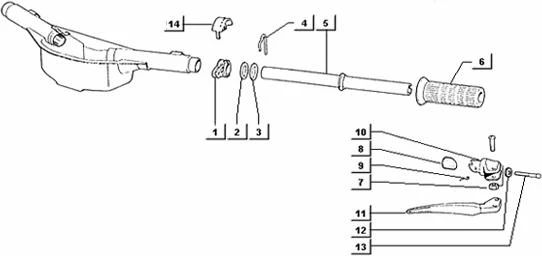

Guidon : T74 GUIDON (GUIDON)
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/330/Ape_TM_703_Diesel_422CC_1997-2004_T74_20251008100456.PNG)
1 |
228693 - LEVETTA COM.CA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/4/img/65774.jpg)
2 |
HANDLEBAR WASHER "PIAGGIO GENUINE PART" APE -177147 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/5/img/65775.jpg)
3 |
HANDLEBAR WASHER "PIAGGIO GENUINE PART" APE -177148 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/9/2/img/65692.jpg)
4 |
101481 - CLIPS More informationQuantity required : 1 |
||||||
|
5 |
225296 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/4/6/2/img/113462.jpg)
6 |
493955 - KIT POIGNEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/8/img/66048.jpg)
7 |
265249 - VIS More informationQuantity required : 1 |
||||||
|
8 |
177141 - COIN More informationQuantity required : 1 |
||||||
|
9 |
177132 - RESSORT More informationQuantity required : 1 |
||||||
|
10 |
17789109 - PORTE LEVIER More informationQuantity required : 1 |
||||||
|
11 |
2654624 - LEVIER EMBRAYAYGE More informationQuantity required : 1 |
||||||
|
12 |
016343 - RONDELLE More informationQuantity required : 1 |
||||||
|
13 |
|
